Components and Components Location: Components

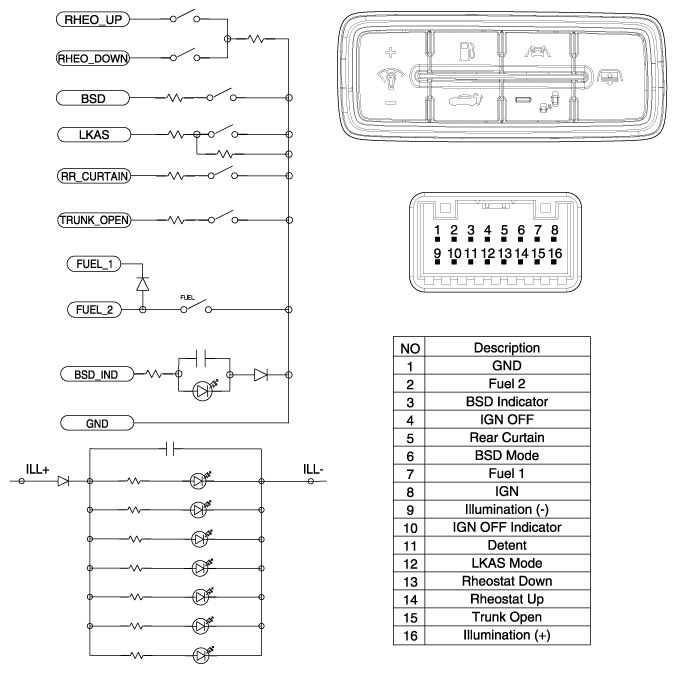

Fig 1: Power Trunk Open Close Switch, Terminals And Circuit Diagram

G10454531

Courtesy of HYUNDAI MOTOR AMERICA
