Tailgate Switch

  1. Check for continuity between the tailgate latch terminals.
    Fig 1: Tailgate Latch Connector Terminals
    G10454188Courtesy of HYUNDAI MOTOR AMERICA
  2. If continuity is not specified, inspect the switch

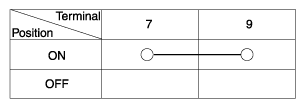

Fig 2: Tailgate Latch Terminals Continuity Chart
G10454189Courtesy of HYUNDAI MOTOR AMERICA
