Home >> Hyundai >> 2016 >> Genesis 5.0 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission Control System >> Shift Lever >> Components and Components Location >> Components

Components and Components Location: Components

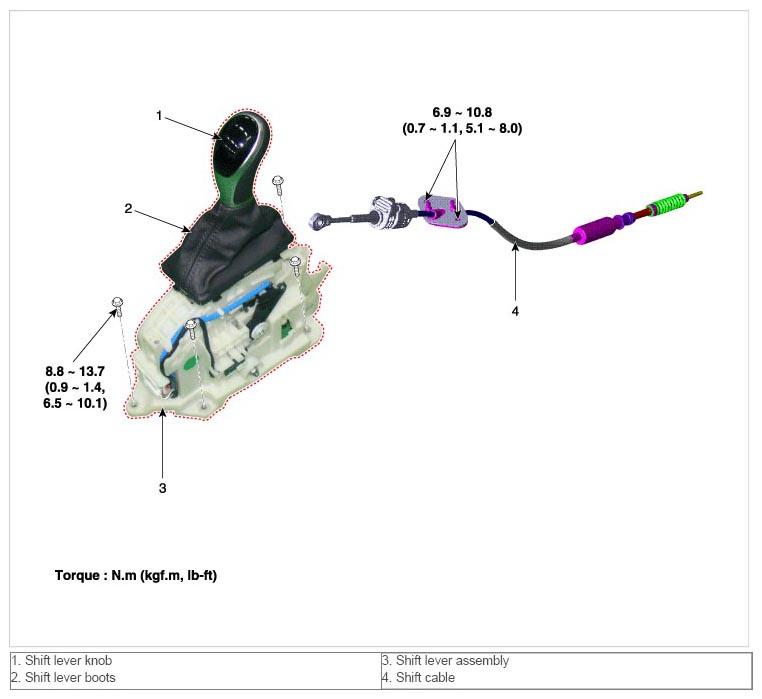

Fig 1: Shift Lever Components With Torque Specifications

G10452519

Courtesy of HYUNDAI MOTOR AMERICA
