Home >> Hyundai >> 2016 >> Genesis Coupe 3.8, Automatic Trans >> Repair and Diagnosis >> Electrical >> Starter >> Button Engine Start System >> Power Distribution Module - PDM >> Components and Components Location >> Component

Components and Components Location: Component

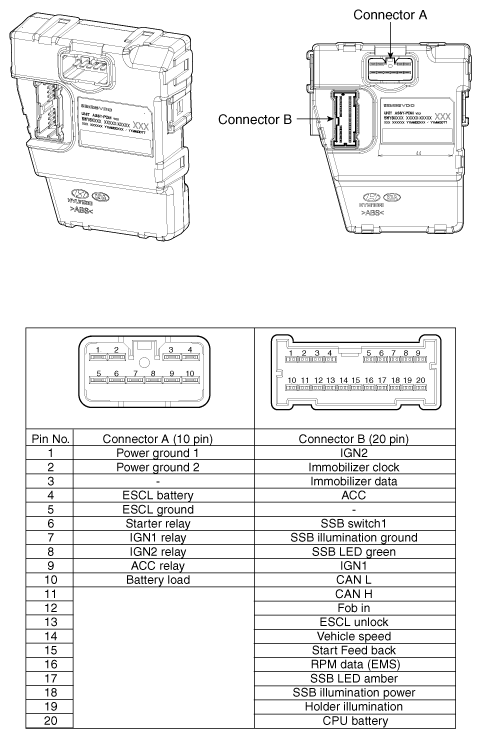

Fig 1: Power Distribution Module Components And Terminals

G10490579

Courtesy of HYUNDAI MOTOR AMERICA
