Home >> Hyundai >> 2016 >> Genesis Coupe 3.8, Automatic Trans >> Repair and Diagnosis >> Electrical >> Starter >> Button Engine Start System >> Start Stop Button >> Components and Components Location >> Component

Components and Components Location: Component

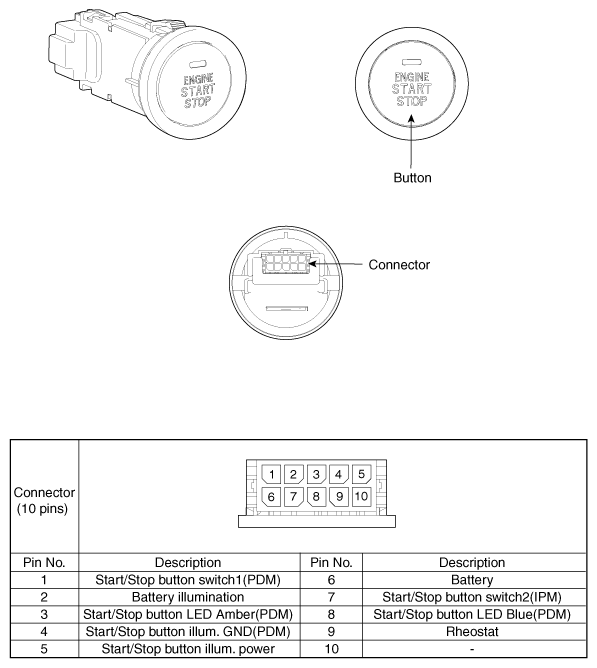

Fig 1: Start Stop Button Components And Terminals
G10490573Courtesy of HYUNDAI MOTOR AMERICA
