Home >> Hyundai >> 2016 >> Santa Fe XL Base >> Repair and Diagnosis >> Electrical >> Starter >> Engine Starting System >> Troubleshooting

Engine Starting System: Troubleshooting

NOTE:
  • The battery must be in good condition and fully charged for this troubleshooting.

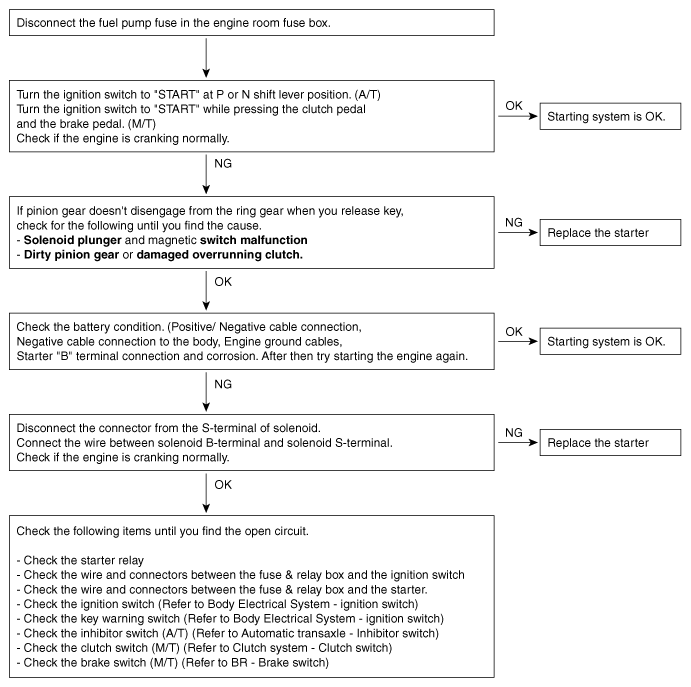

Fig 1: Starting System Troubleshooting Flow Chart
G10574727Courtesy of HYUNDAI MOTOR AMERICA
