Repair procedures: Installation

Install in the reverse order of removal.
CAUTION: If the oil seal on the transaxle case side is damaged and fluid is leaking, replace the oil seal with a new unit.
When installing the new oil seal, use the specialized tool {Oil seal installer - [2WD : transaxle case side (SST No.: 09453-3L240, 09231-H1100), converter housing side (SST No.: 09453-3L240, 09231-H1100)], [4WD : transaxle case side (SST No.: 09453-3L240, 09231-H1100), converter housing side (SST No.: 09453-2W100, 09231-H1100)]}.
NOTE:
After replacement or reinstallation procedure of the automatic transaxle assembly, must perform procedures below.
- After fluid level check, refill the automatic transaxle with fluid.
  (Refer to "FLUID ")
- Adding coolant.
  (Refer to "COOLANT ")
- After replacing the automatic transaxle, clear the Diagnostic Trouble Code (DTC) using the GDS tool. DTC cannot be cleared by disconnecting the battery.
- When replacing the automatic transaxle, reset the automatic transaxle's values by using the GDS.

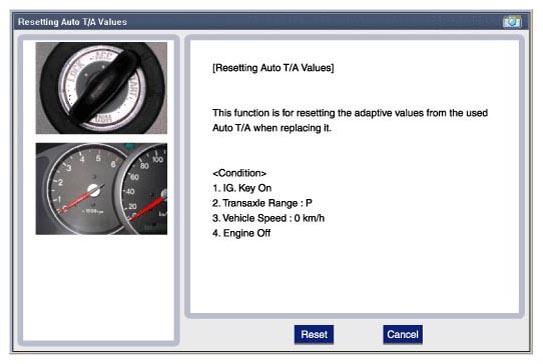

  Fig 1: Screen Display - Resetting Auto T/A Values (1 Of 3)
  Courtesy of HYUNDAI MOTOR AMERICA

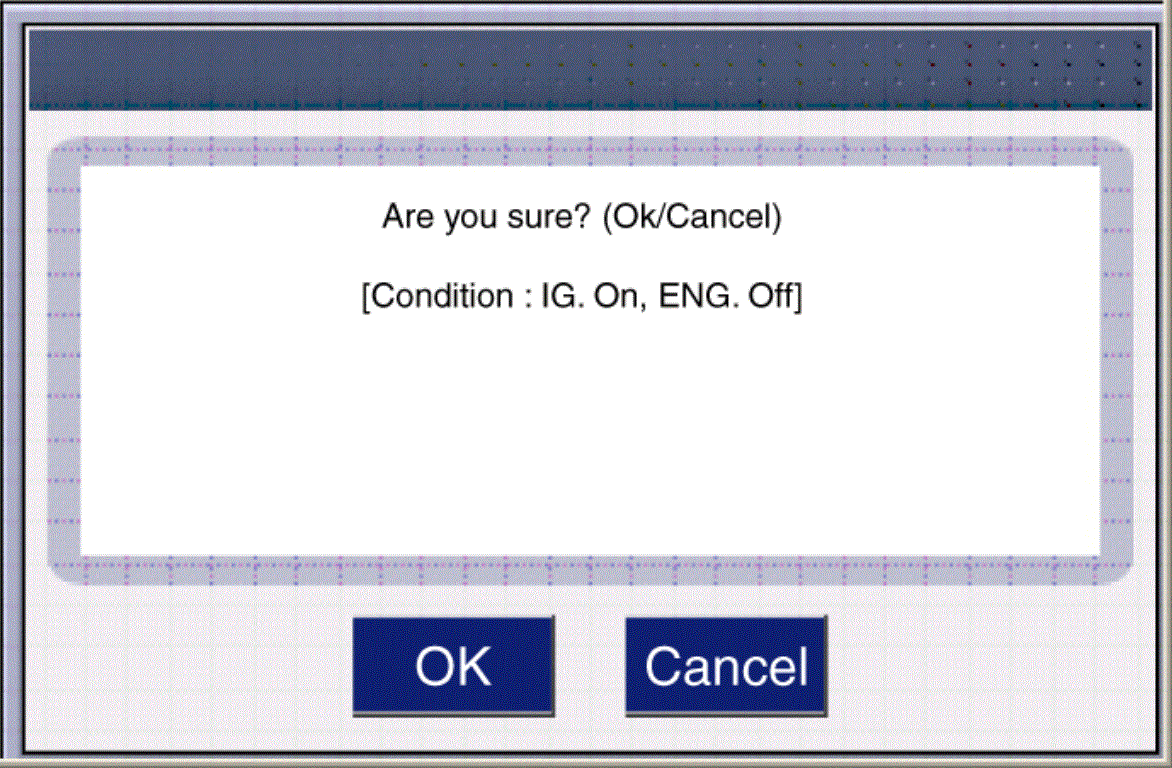

  Fig 2: Screen Display - Resetting Auto T/A Values (2 Of 3)
  Courtesy of HYUNDAI MOTOR AMERICA

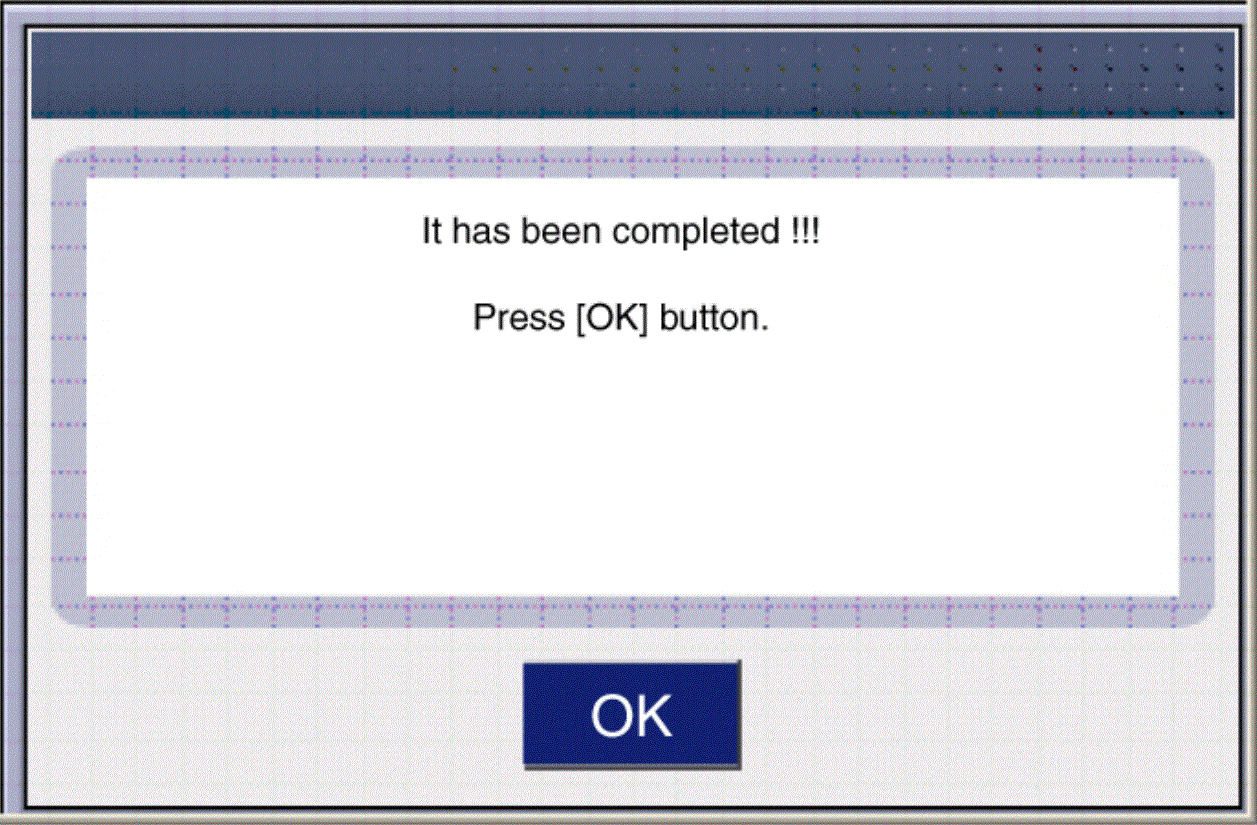

  Fig 3: Screen Display - Resetting Auto T/A Values (3 Of 3)
  Courtesy of HYUNDAI MOTOR AMERICA
- Perform TCM learning after replacing the transaxle to prevent slow transaxle response, jerky acceleration and jerky startup.
  (Refer to "REPAIR PROCEDURES ")
