Engine Control System - 1.6L (Except HEV)
>>
Engine Control System
>>
Components and Components Location
>>
Components Location
Components Location

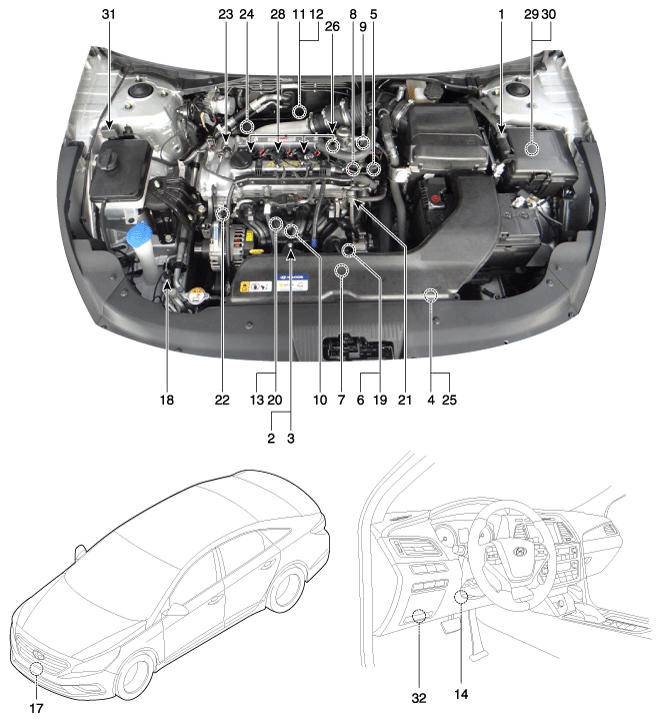

Fig 1: Engine Control System Related Components (1 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

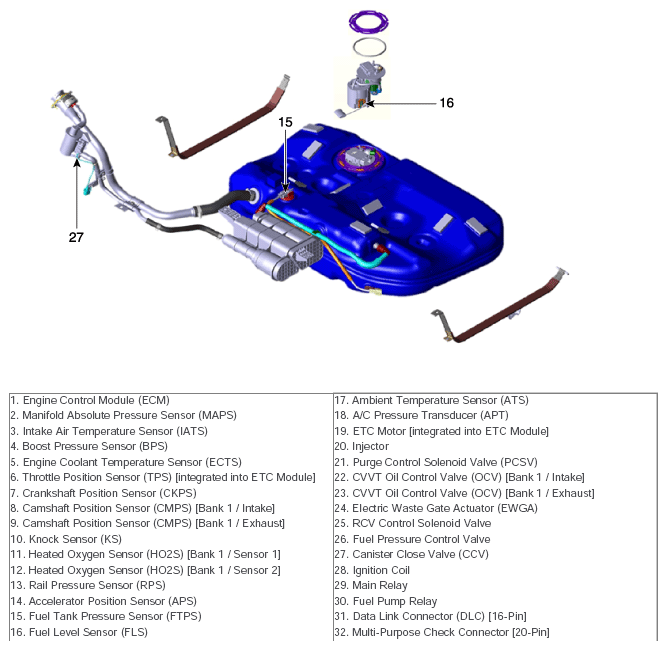

Fig 2: Engine Control System Related Components (2 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

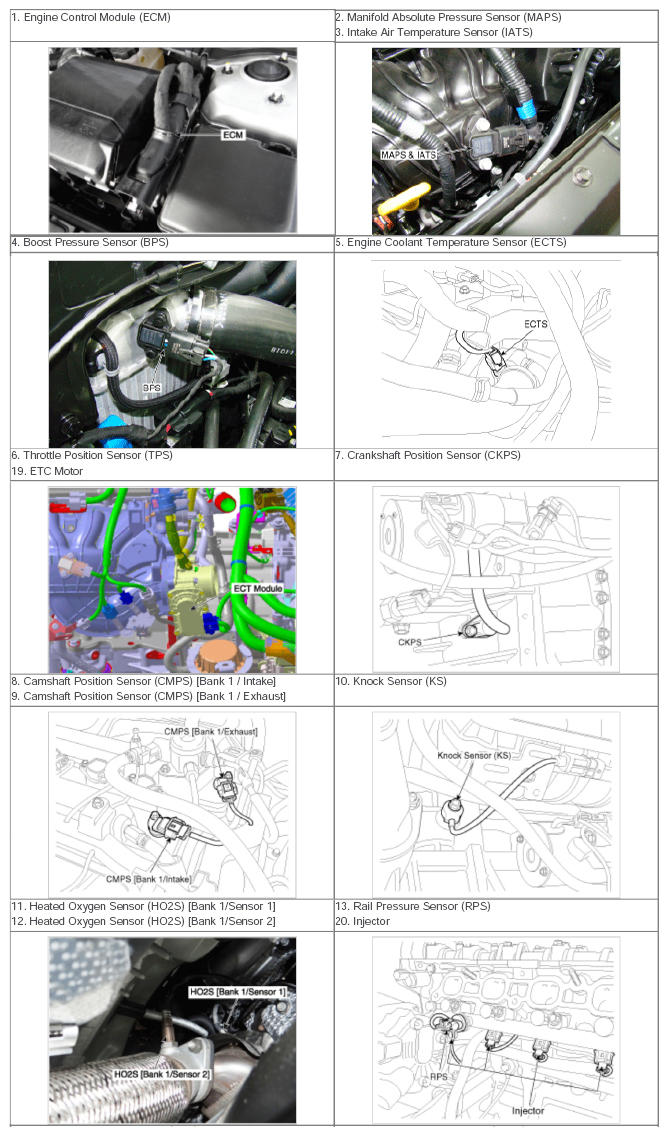

Fig 3: Engine Control System Related Components (3 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

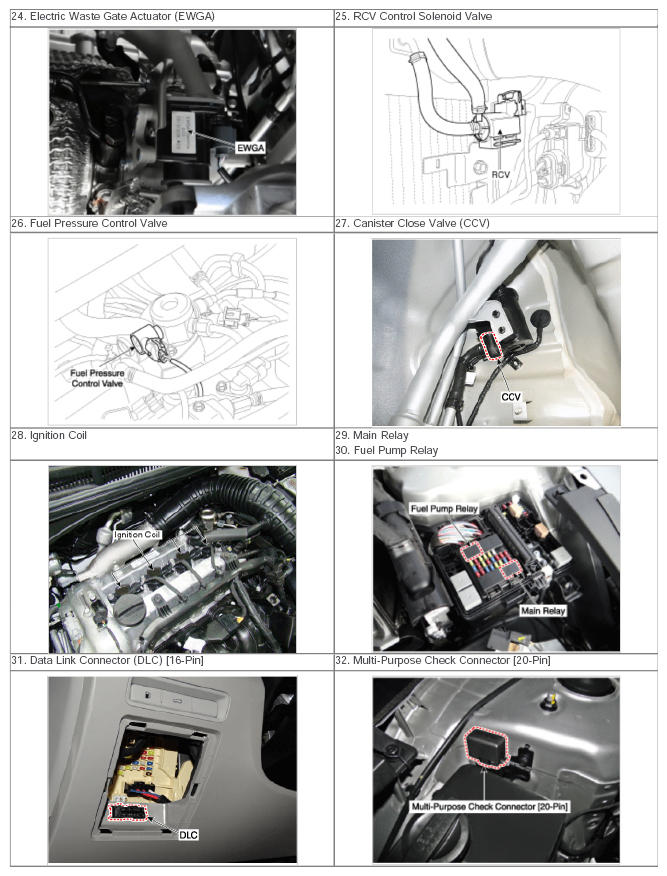

Fig 4: Engine Control System Related Components (4 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

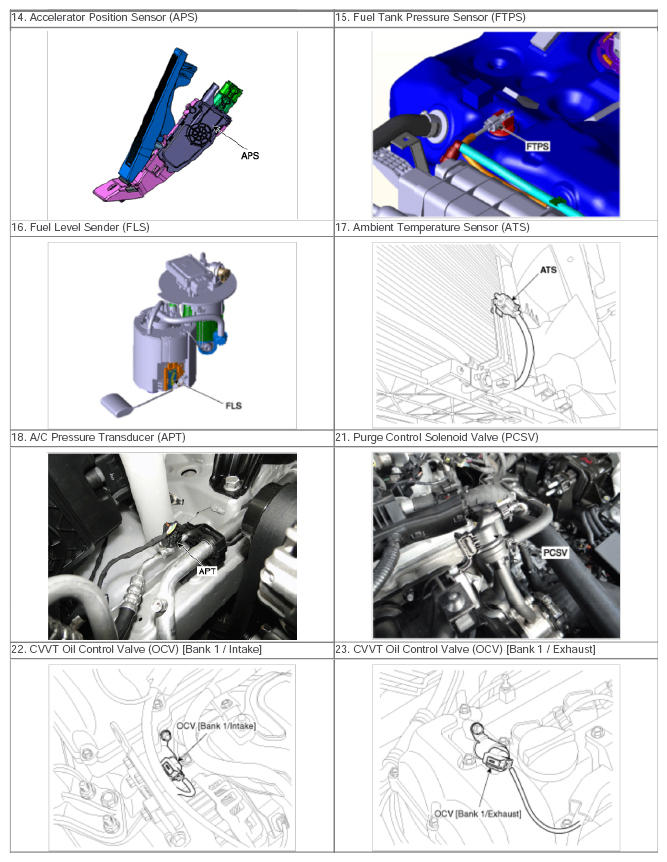

Fig 5: Engine Control System Related Components (5 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
