Signal Waveform

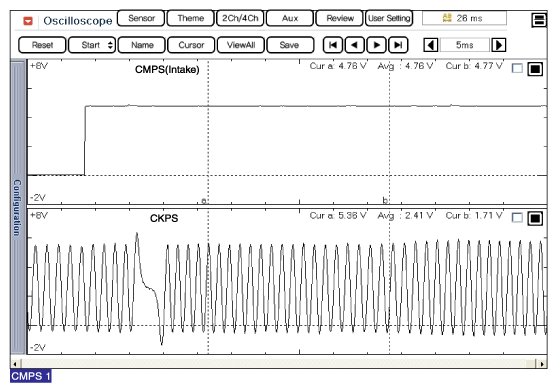

Fig 1: Camshaft Position Sensor (CMPS) Signal Waveform (1 Of 2)
G11643652Courtesy of HYUNDAI MOTOR AMERICA

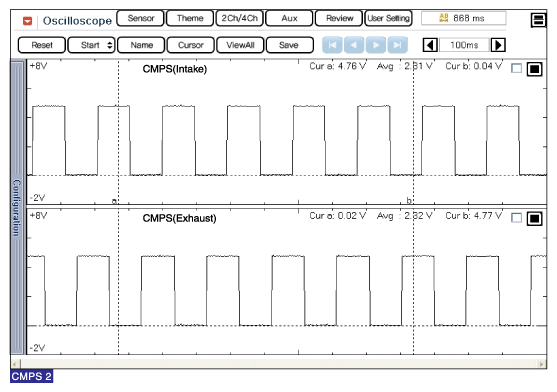

Fig 2: Camshaft Position Sensor (CMPS) Signal Waveform (2 Of 2)
G11643653Courtesy of HYUNDAI MOTOR AMERICA
