Repair Procedures: Inspection: Notes

Inspection Flow of the Inhibitor Switch

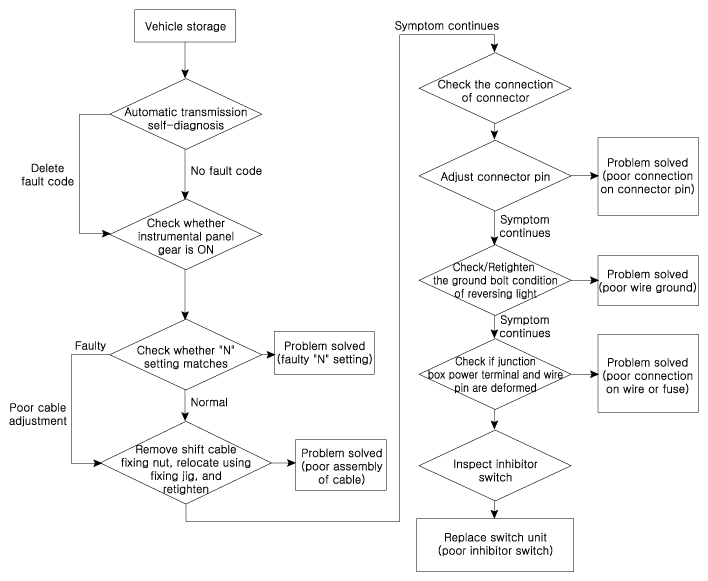

Fig 1: Inhibitor Switch Inspection Flow Chart
G11643990Courtesy of HYUNDAI MOTOR AMERICA
