Engine Control System - 1.6L GDI
>>
Engine Control System
>>
Components and Components Location
>>
Components Location
Components Location

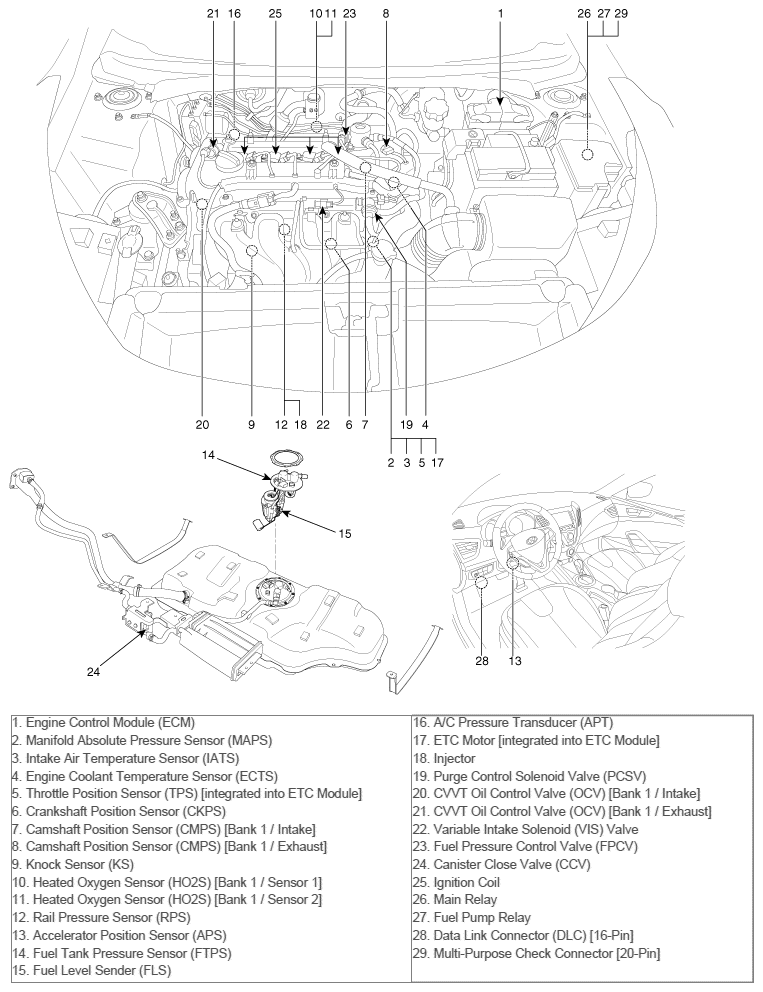

Fig 1: Engine Control System Components Locations (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

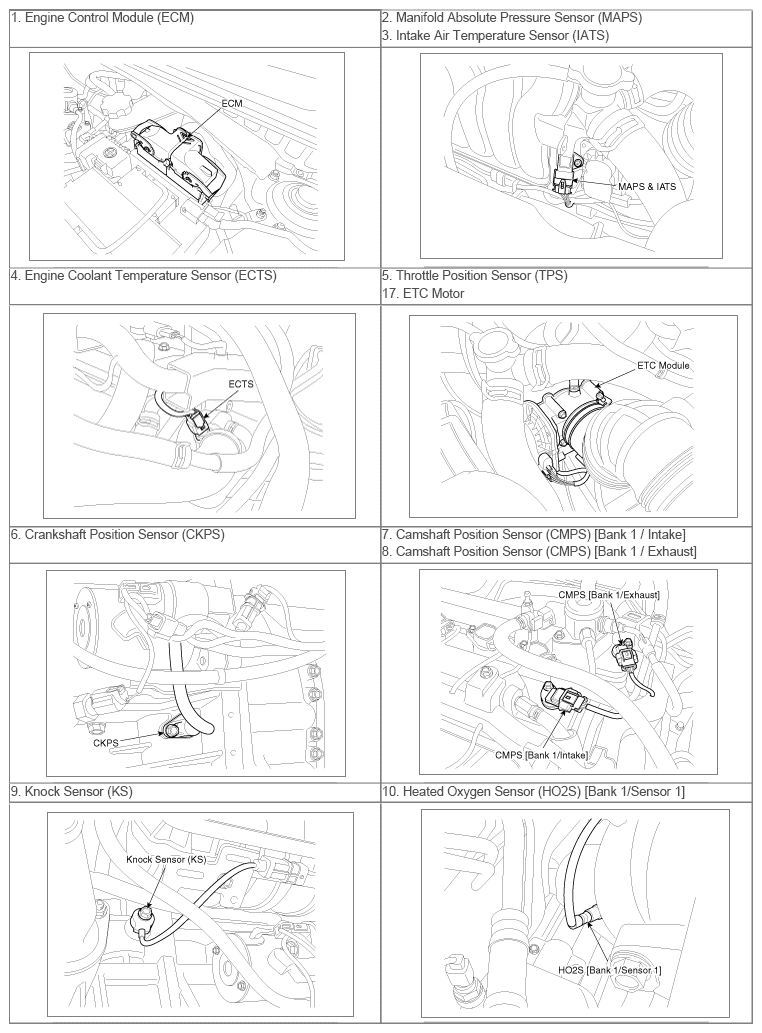

Fig 2: Engine Control System Related Components Locations (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

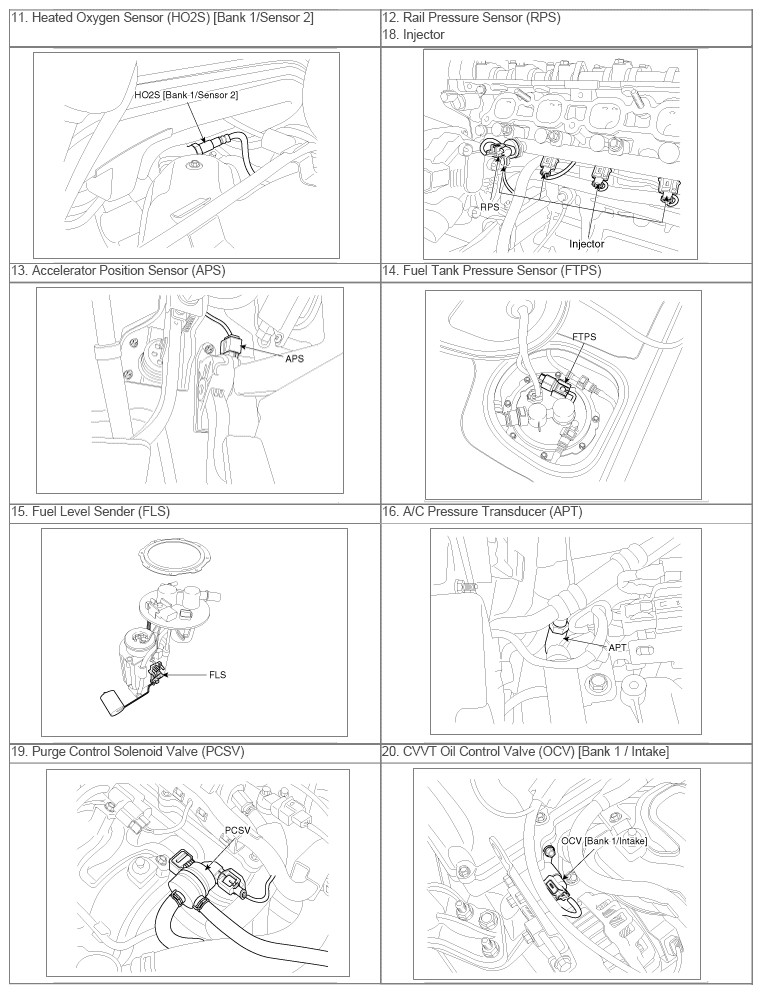

Fig 3: Engine Control System Related Components Locations (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

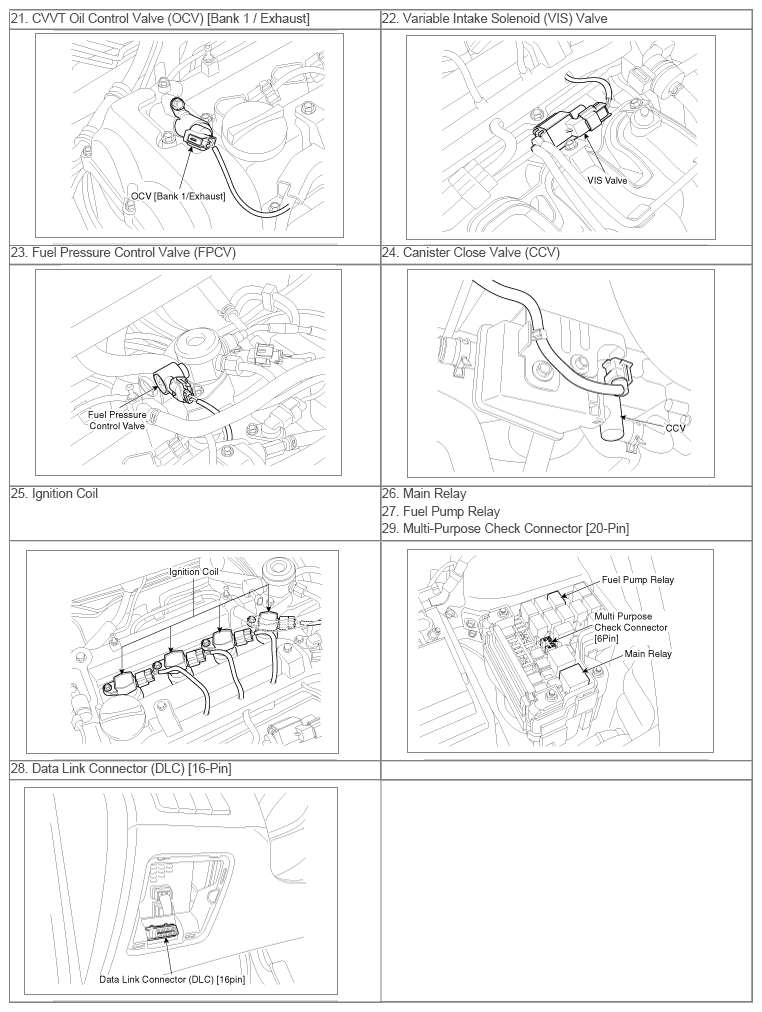

Fig 4: Engine Control System Related Components Locations (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
