Antenna Status Check

  1. Connect the cable of GDS to the data link connector in driver side Crash Pad Lower Panel.
  2. Select the "Antenna Status Check".

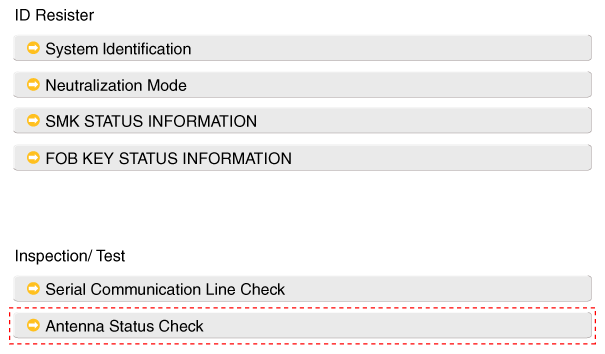

    Fig 1: Antenna Status Check - Screen Display
    G10605716Courtesy of HYUNDAI MOTOR AMERICA
  3. After IG ON, select the "Antenna Status Check".

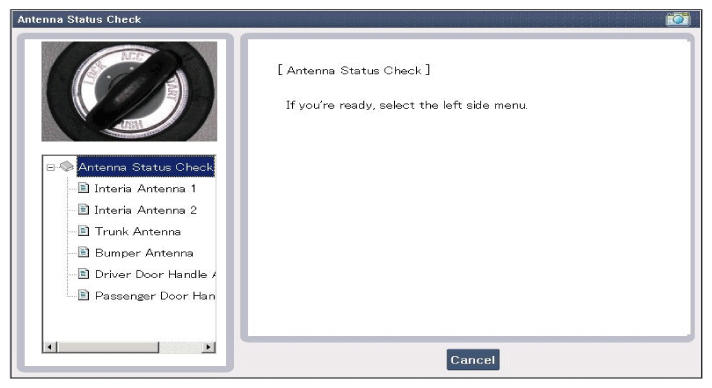

    Fig 2: Antenna Status Check (IG ON) - Screen Display
    G10605717Courtesy of HYUNDAI MOTOR AMERICA
  4. Set the Smart Key near the related antenna and operate it with a GDS.

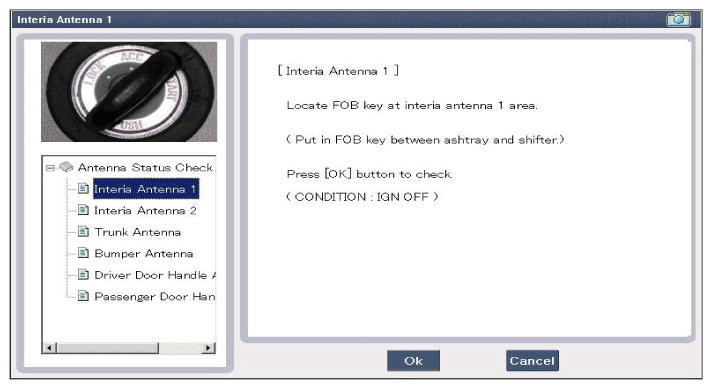

    Fig 3: Interia Antenna 1 - Screen Display (1 Of 2)
    G10605718Courtesy of HYUNDAI MOTOR AMERICA

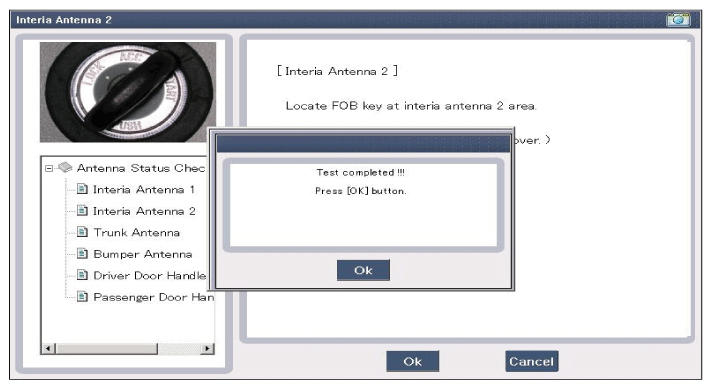

    Fig 4: Interia Antenna 2 - Screen Display (2 Of 2)
    G10605719Courtesy of HYUNDAI MOTOR AMERICA
  5. If the Smart Key runs normal, the related antenna, Smart Key (Transmission, Reception) and exterior receiver are normal.
  6. Antenna Status
    1. INTERIOR Antenna 1
    2. INTERIOR Antenna 2
    3. Trunk Antenna
    4. BUMPER/Antenna
    5. DRV_DR Antenna
    6. AST_DR Antenna
