Camshaft Position Sensor (CMPS): Troubleshooting: WaveForm

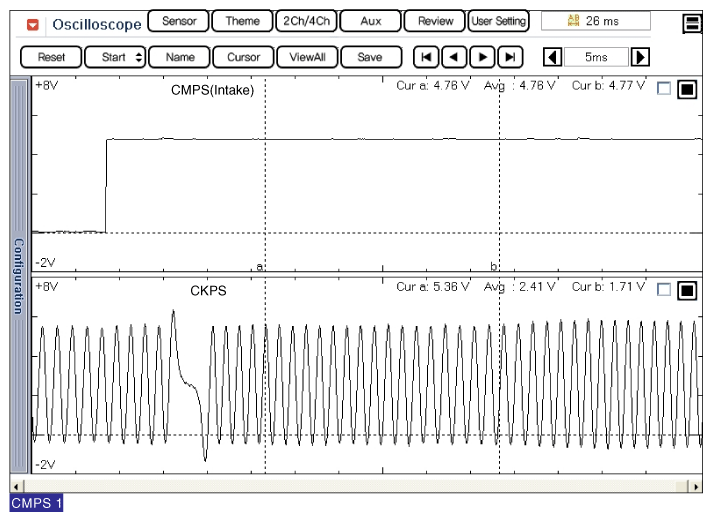

Fig 1: CMPS (Intake) And CKPS Waveform - Screen Display (1 Of 2)
G10607935Courtesy of HYUNDAI MOTOR AMERICA

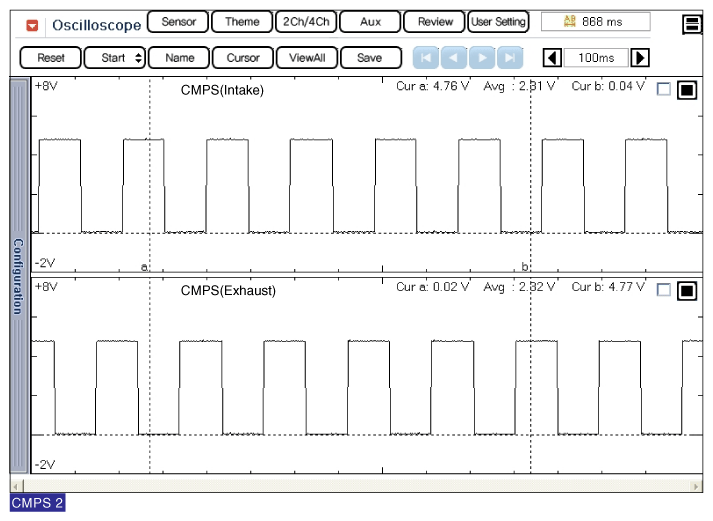

Fig 2: CMPS (Intake) And CMPS (Exhaust) Waveform - Screen Display (2 Of 2)
G10607936Courtesy of HYUNDAI MOTOR AMERICA
