Repair Procedures: Inspection

  1. Disconnect the ignition switch connector (B) and key switch connector (A) from under the steering column.
    G12019447Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
Fig 1: Ignition Switch And Key Switch Connector Terminals
G12019448Courtesy of HYUNDAI MOTOR AMERICA

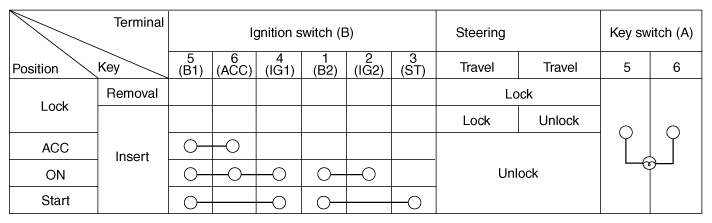

Fig 2: Ignition Switch And Key Switch Terminals Continuity Chart
G12019449Courtesy of HYUNDAI MOTOR AMERICA
