Inspection flow

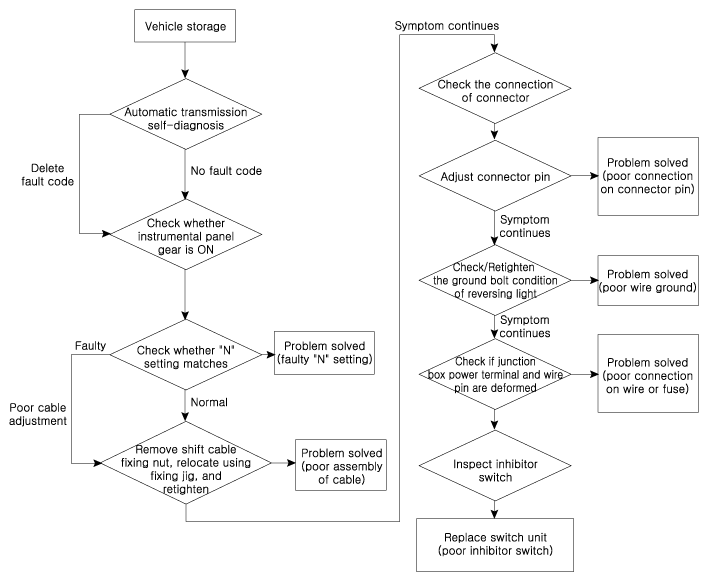

Fig 1: Inhibitor Switch Inspection Flow Chart
G12019151Courtesy of HYUNDAI MOTOR AMERICA
