Alarm Horn Control

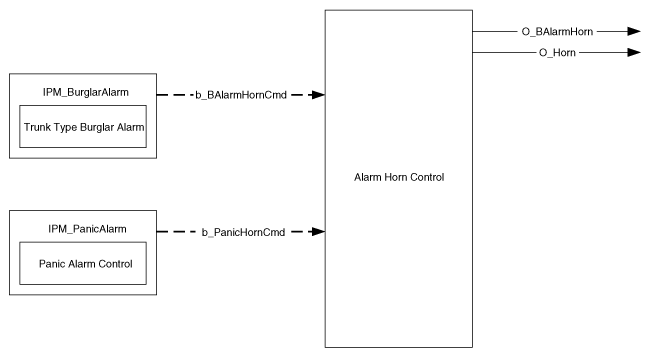

Fig 1: Alarm Horn Control Function Diagram
G12091828Courtesy of HYUNDAI MOTOR AMERICA
Function Characteristics Name
Signal Label Spec. Designation
Input Internal b_BAlarmHornCmd ALARM Horn Operation Command
b_PanicHornCmd Panic Horn Command
Output Logic O_BAlarmHorn Horn Output for NA Variant
O_Horn General Horn Output
