ESCL Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "ESCL STATUS INFO".

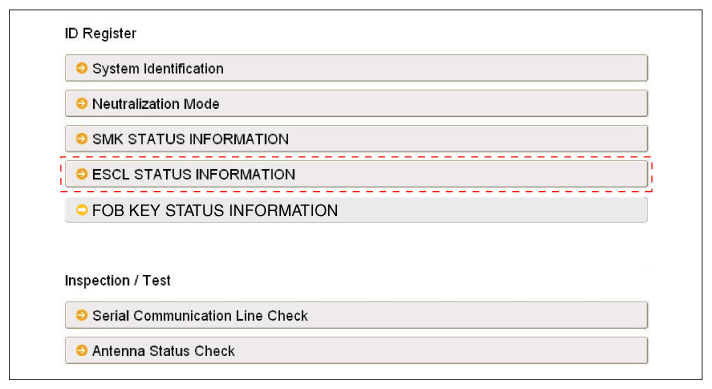

    Fig 1: Scantool Display - ID Register
    G12091737Courtesy of HYUNDAI MOTOR AMERICA

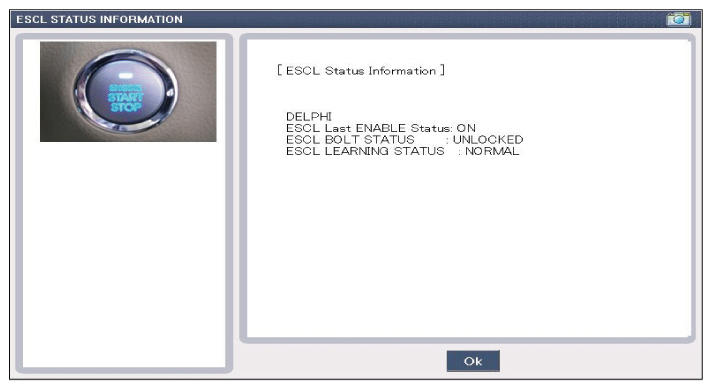

    Fig 2: Scantool Display - ESCL Status Information
    G12091738Courtesy of HYUNDAI MOTOR AMERICA
