FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "FOB KEY STATUS INFO".

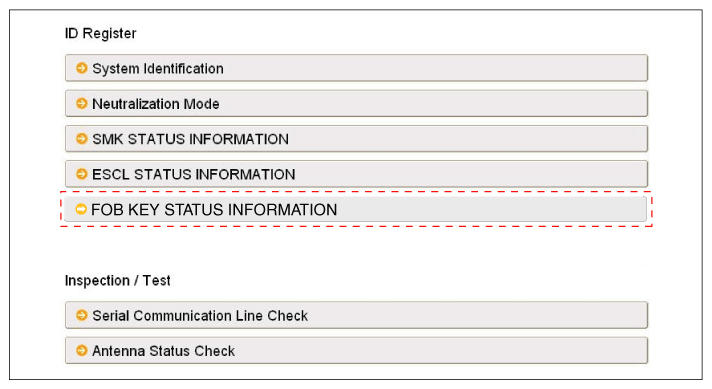

    Fig 1: Scantool Display - ID Register
    G12091733Courtesy of HYUNDAI MOTOR AMERICA

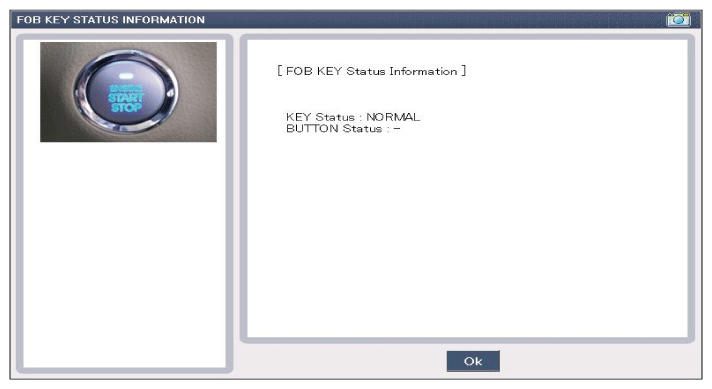

    Fig 2: Scantool Display - FOB Key Status Information
    G12091734Courtesy of HYUNDAI MOTOR AMERICA
