Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "SMK STATUS INFO".

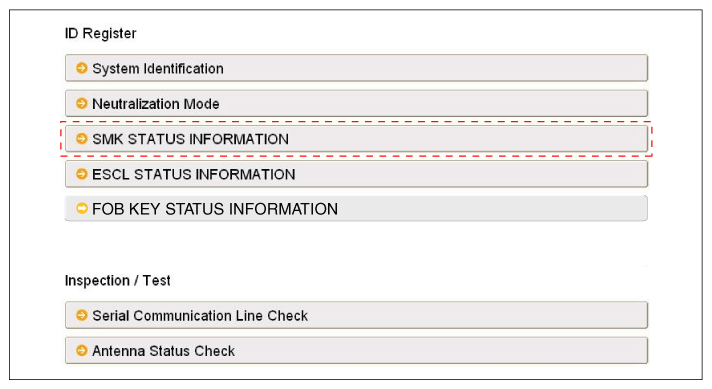

    Fig 1: Scantool Display - ID Register
    G12091735Courtesy of HYUNDAI MOTOR AMERICA

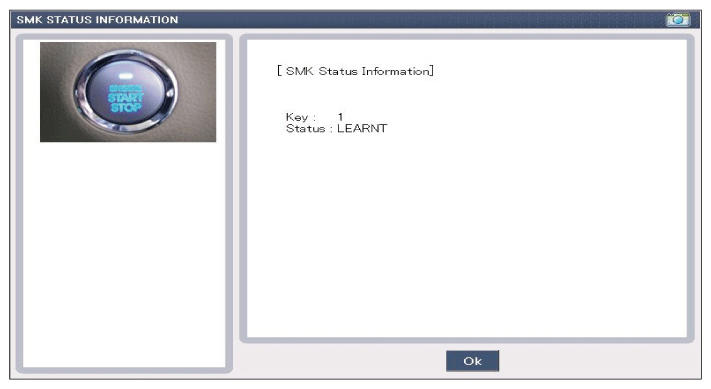

    Fig 2: Scantool Display - SMK Status Information
    G12091736Courtesy of HYUNDAI MOTOR AMERICA
