Home >> Hyundai >> 2017 >> Azera Base >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle Assembly >> Front Hub - Axle >> Components And Components Location >> Components

Components And Components Location: Components

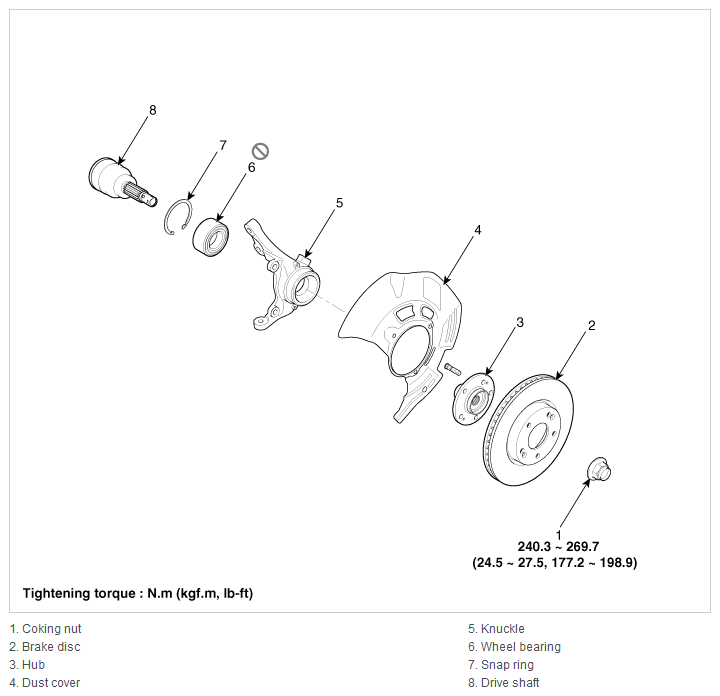

Fig 1: Exploded View Of Front Hub - Axle Components With Torque Specification

G12089229

Courtesy of HYUNDAI MOTOR AMERICA
