Home >> Hyundai >> 2017 >> Azera Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Timing System >> Timing Chain >> Components And Components Location >> Components

Components And Components Location: Components

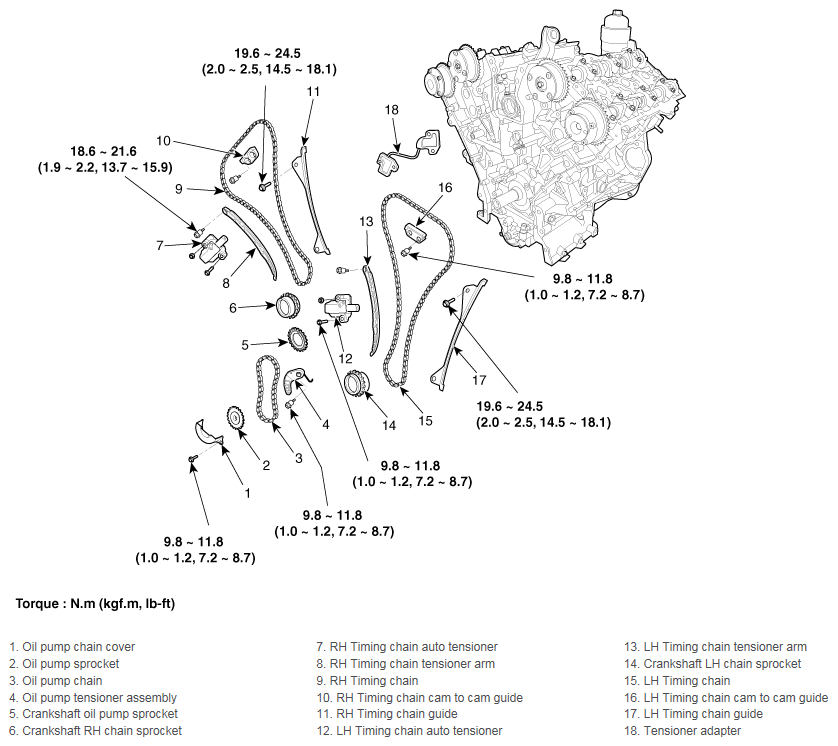

Fig 1: Timing Chain Components With Torque Specification

G12088986

Courtesy of HYUNDAI MOTOR AMERICA
