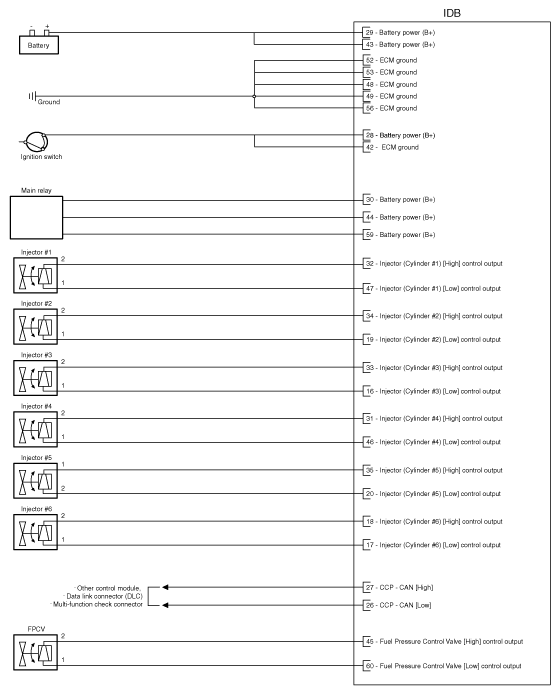

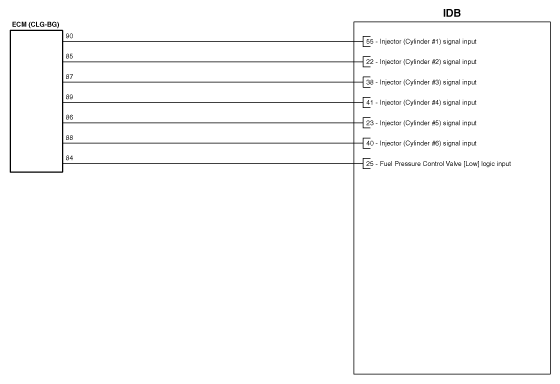

Home >> Hyundai >> 2017 >> Azera Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Injector Drive Box (IDB) >> Schematic Diagrams >> Circuit Diagram
