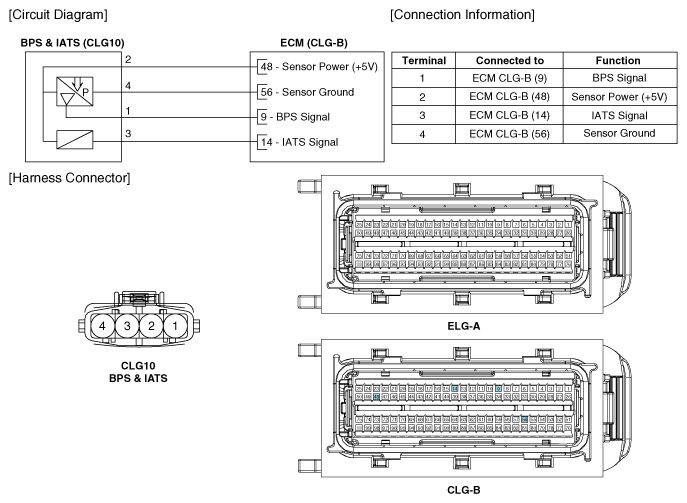

Home >> Hyundai >> 2017 >> Azera Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Intake Air Temperature Sensor (IATS) >> Schematic Diagrams >> Circuit Diagram
