Repair Procedures: Replacement

Remove the front wheel & tire (A).
Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

Fig 1: Removing Front Wheel & Tire
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Be careful not to damage to the hub bolts when removing the front wheel & tire.
Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.
Tightening torque:

32.4 ~ 34.3 N.m (3.3 ~ 3.5 kgf.m, 23.9 ~ 25.3 lb-ft)

Fig 2: Disconnecting Universal Joint Assembly From Pinion Of Steering Gear Box
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Keep the neutral-range to prevent the damage of the clock spring inner cable when you handle the steering wheel.
- Make sure when you reassemble the universal joint and pinion shaft certainly has been inserted.
Remove the under cover (A).

Fig 3: Removing Under Cover
Courtesy of HYUNDAI MOTOR AMERICA
Remove the sprit pin and castle nut and then disconnect the tie-rod end (A) from the front knuckle.
Tightening torque:

34.3 ~ 44.1 N.m (3.5 ~ 4.5 Kgf.m, 25.3 ~ 32.5 lb-ft)

Fig 4: Disconnecting Tie-Rod End From Front Knuckle
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the bolt & nut and then remove the lower arm (A).
Tightening torque:

98.1 ~ 117.7 N.m (10.0 ~ 12.0 Kgf.m, 72.3 ~ 86.8 lb-ft)

Fig 5: Removing Lower Arm
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the stabilizer link (B) with the front strut assembly (A) after loosening the nut.
Tightening torque:

98.1 ~ 117.7 N.m (10.0 ~ 12.0 Kgf.m, 72.3 ~ 86.8 lb-ft)

Fig 6: Disconnecting Stabilizer Link With Front Strut Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the bolt and then remove the front roll stopper (A).
Tightening torque:

107.9 ~ 117.7 N.m (11.0 ~ 13.0 Kgf.m, 79.6~94.0 lb-ft)

Fig 7: Removing Front Roll Stopper
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the muffler rubber hanger (A).

Fig 8: Disconnecting Muffler Rubber Hanger
Courtesy of HYUNDAI MOTOR AMERICA

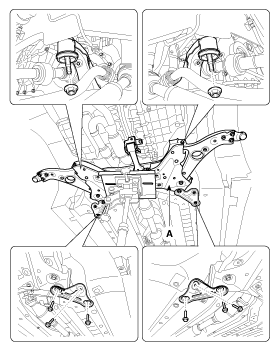

Loosen the bolts & nuts and then remove the sub frame (A).
Tightening torque:

Sub frame mounting bolts & nuts:

156.9 ~ 176.5 N.m (16.0 ~ 18.0 kgf.m, 115.7 ~ 130.2 lb-ft)

Sub frame bracket bolts & nuts:

44.1 ~ 58.8 N.m (4.5 ~ 6.0 kgf.m, 32.5 ~ 43.4 lb-ft)

Fig 9: Removing Sub Frame
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front lower arm.
(Refer to Front Suspension System - "Front Lower Arm ")
Remove the front strut assembly.
(Refer to Front Suspension System - "Front Strut Assembly ")
Remove the front stabilizer bar.
(Refer to Front Suspension System - "Front Stabilizer Bar ")
Remove the steering gear box.
(Refer to Steering System - "STEERING GEAR BOX ")
Installation is the reverse of removal.
Check the alignment.
(Refer to Tires/Wheels - "ALIGNMENT ")
