Inspection Flow

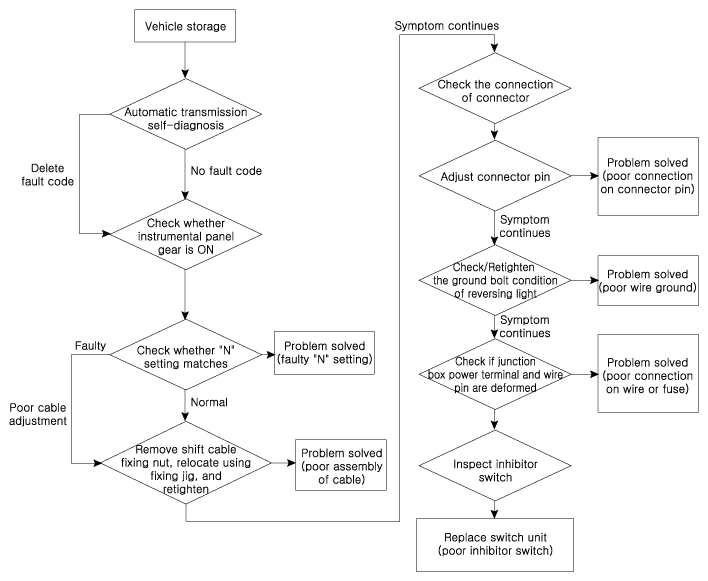

Fig 1: Automatic Transmission Self-Diagnosis Inspection Flowchart
G12088836Courtesy of HYUNDAI MOTOR AMERICA
