Home >> Hyundai >> 2017 >> Elantra GT Automatic Trans >> Repair and Diagnosis >> Electrical >> Starter >> Engine Starting System >> Troubleshooting

Engine Starting System: Troubleshooting

NOTE:
  • The battery must be in good condition and fully charged for this troubleshooting.

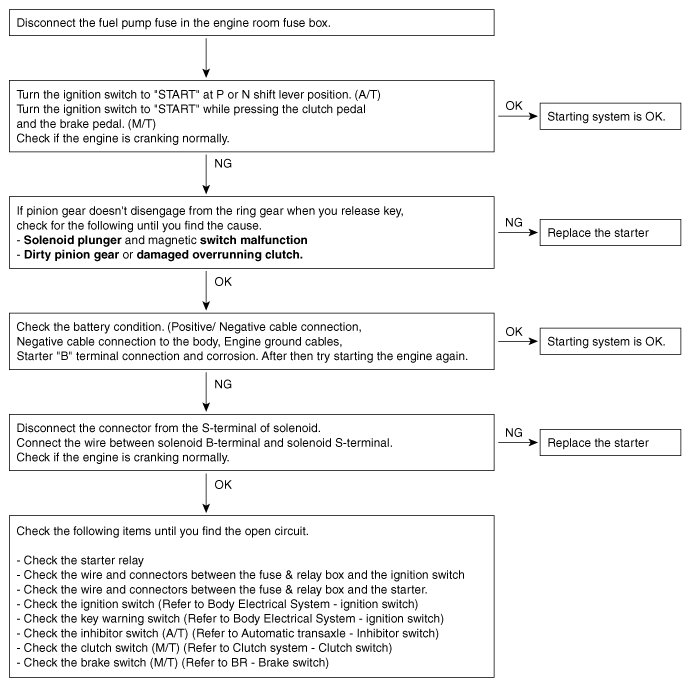

Fig 1: Starting System Troubleshooting Flowchart
G12066156Courtesy of HYUNDAI MOTOR AMERICA
