Components Location

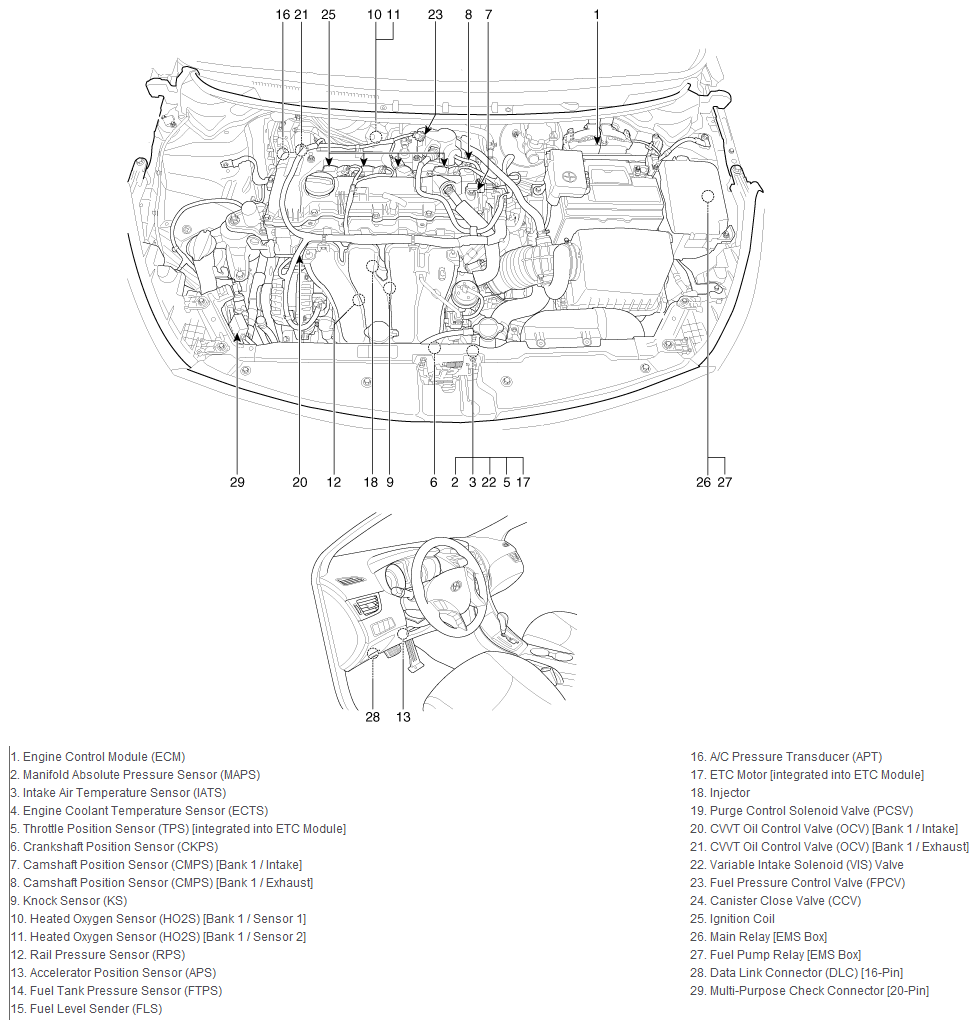

Fig 1: Engine Compartment Components (1 Of 4)
G12066267Courtesy of HYUNDAI MOTOR AMERICA

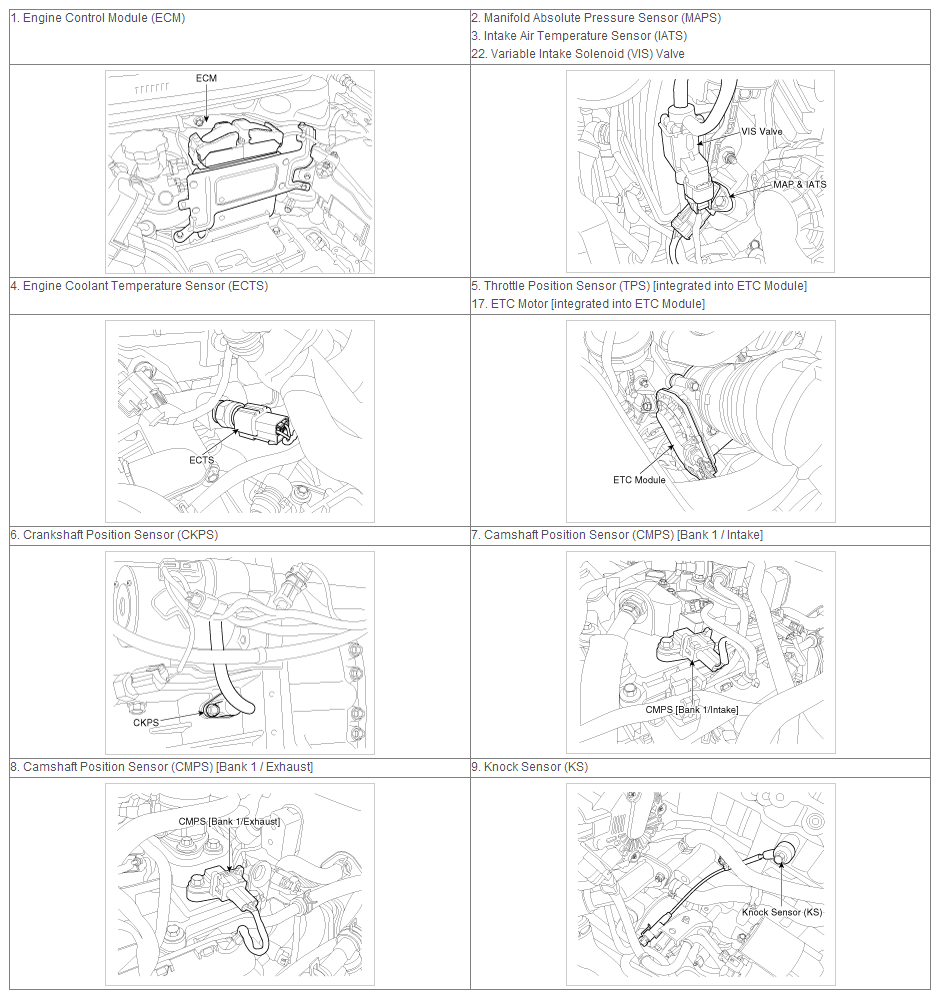

Fig 2: Engine Compartment Components (2 Of 4)
G12066268Courtesy of HYUNDAI MOTOR AMERICA

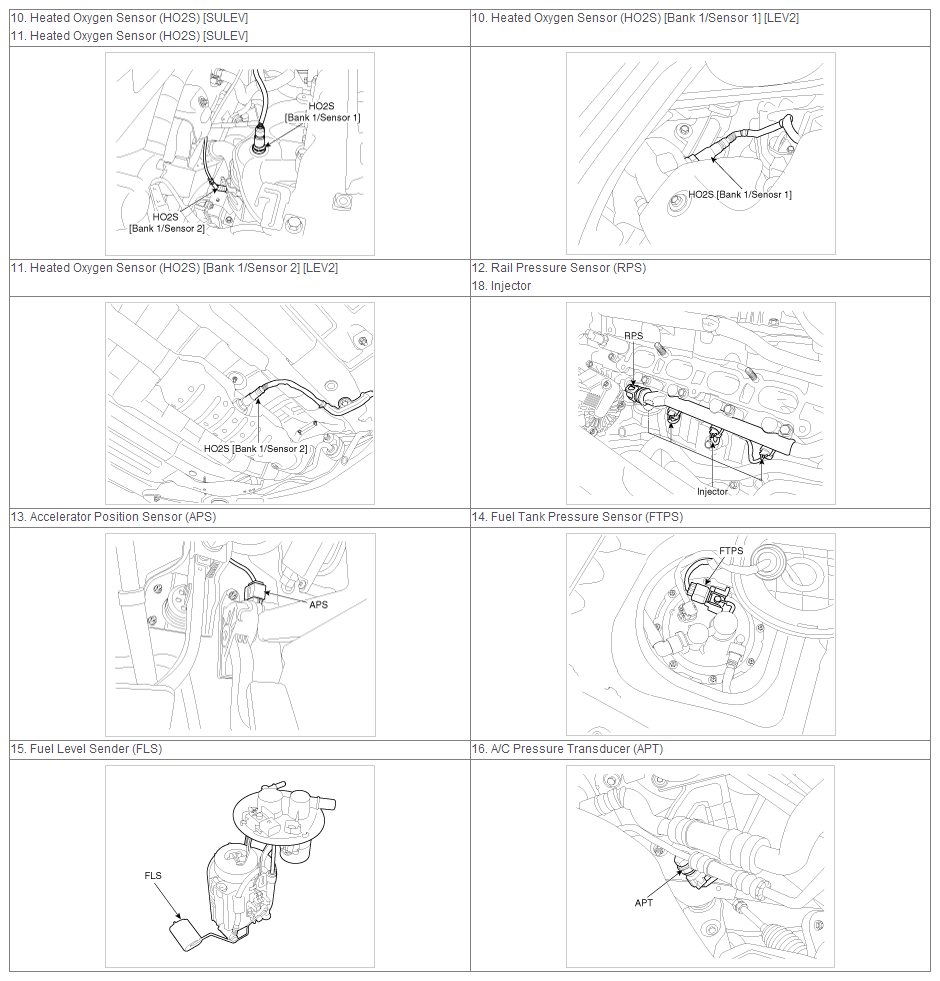

Fig 3: Engine Compartment Components (3 Of 4)
G12066269Courtesy of HYUNDAI MOTOR AMERICA

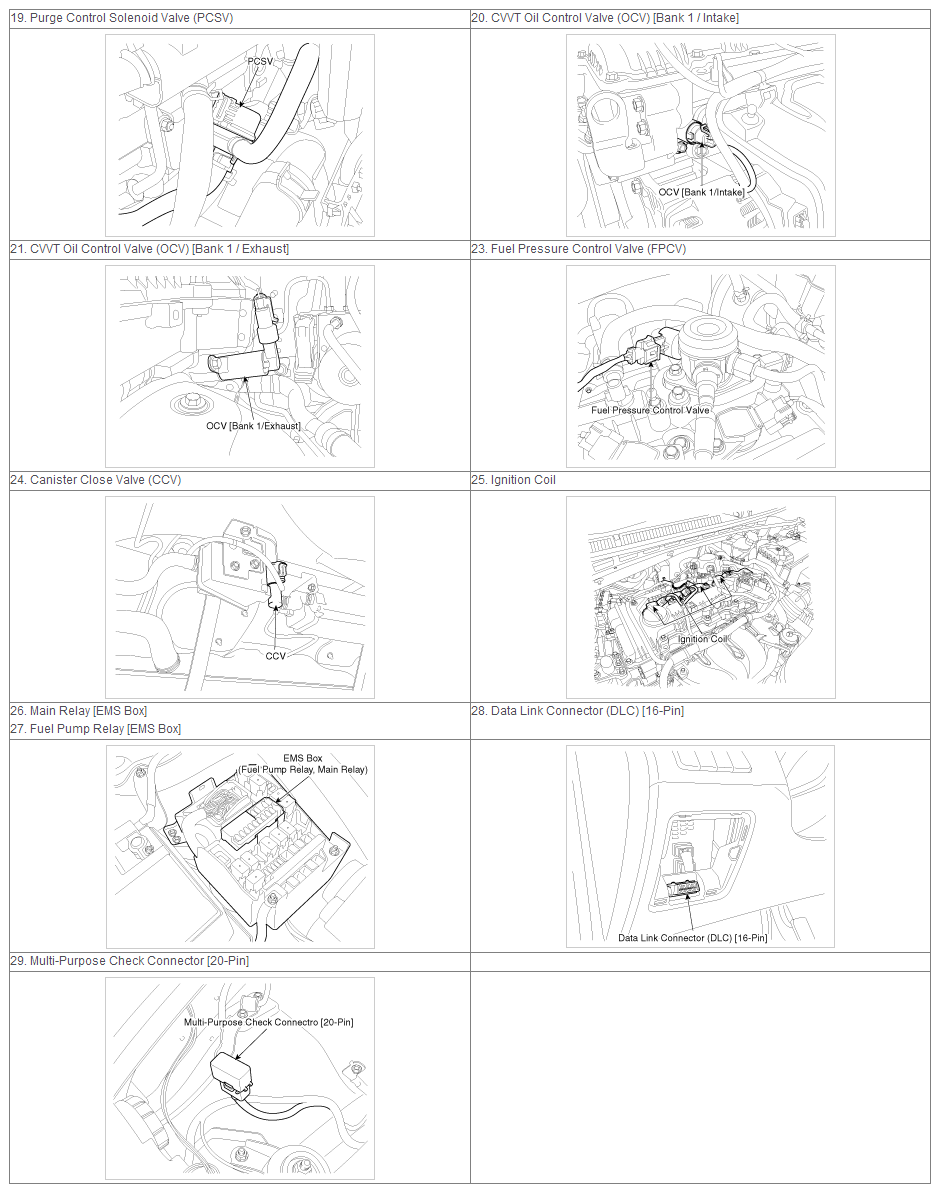

Fig 4: Engine Compartment Components (4 Of 4)
G12066270Courtesy of HYUNDAI MOTOR AMERICA
