Repair Procedures: Inspection

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from the steering column.
    Fig 1: Ignition Switch And Key Warning Switch Connector Terminals
    G12077023Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

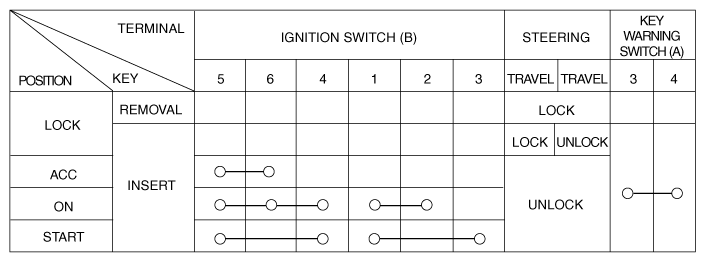

Fig 2: Ignition Switch And Key Warning Switch Terminal Continuity Chart
G12077024Courtesy of HYUNDAI MOTOR AMERICA
