Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization mode".

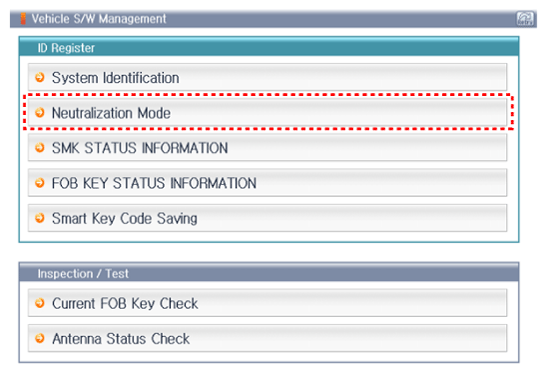

    Fig 1: Scantool Display - Vehicle S/W Management
    G12023377Courtesy of HYUNDAI MOTOR AMERICA

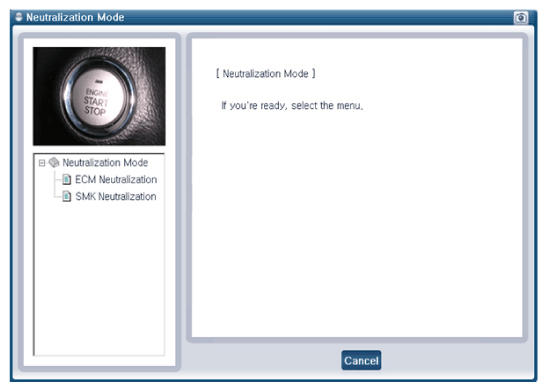

    Fig 2: Scantool Display - Neutralization Mode
    G12023378Courtesy of HYUNDAI MOTOR AMERICA

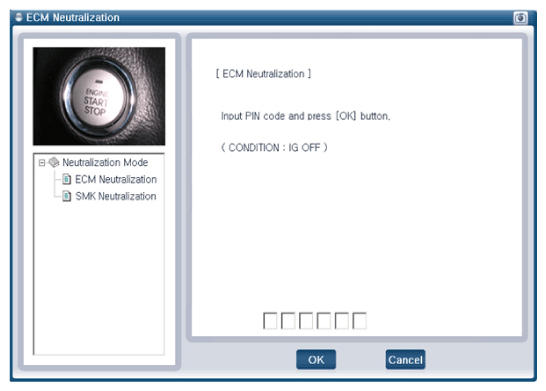

    Fig 3: Scantool Display - ECM Neutralization
    G12023379Courtesy of HYUNDAI MOTOR AMERICA

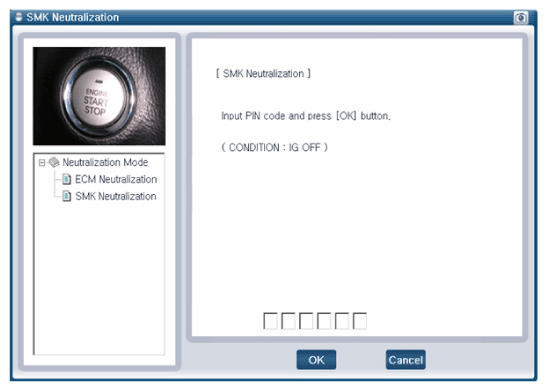

    Fig 4: Scantool Display - SMK Neutralization
    G12023380Courtesy of HYUNDAI MOTOR AMERICA
