Home >> Hyundai >> 2017 >> Santa Fe SE, FWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Liftgate Module >> Power Liftgate Module >> Components And Components Location >> Component Location

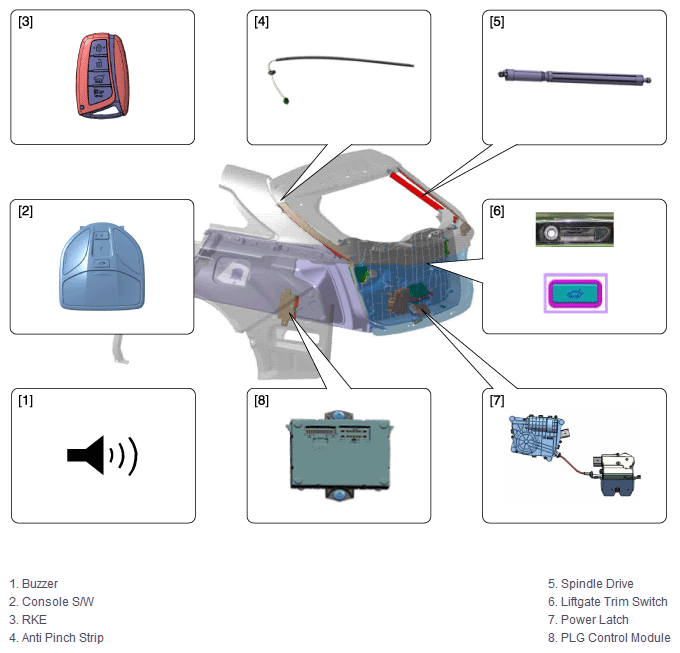

Component Location

G12036217Courtesy of HYUNDAI MOTOR AMERICA

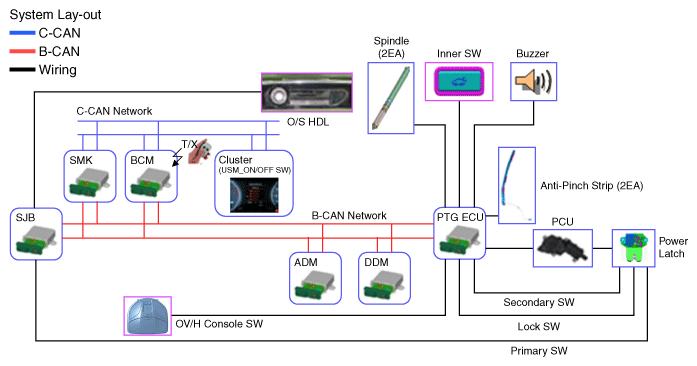

Fig 1: Power Liftgate Module Communication Diagram
G12036218Courtesy of HYUNDAI MOTOR AMERICA
