Home >> Hyundai >> 2017 >> Santa Fe Sport Base, FWD >> Repair and Diagnosis >> Electrical >> Starter >> Button Engine Start System >> Start/Stop Button >> Components and Components Location >> Component

Components and Components Location: Component

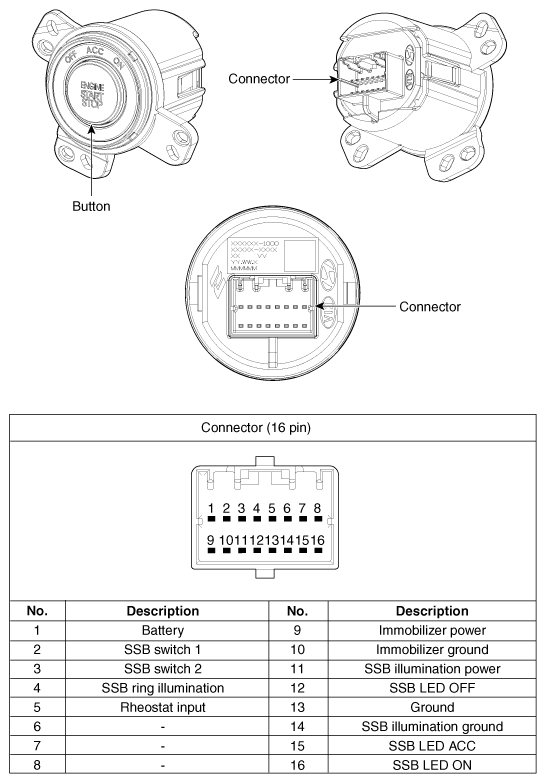

Fig 1: Start And Stop Button Connector Terminals
G12055034Courtesy of HYUNDAI MOTOR AMERICA
