Power Liftgate Module
>>
Components And Components Location
>>
Block Diagram
Block Diagram

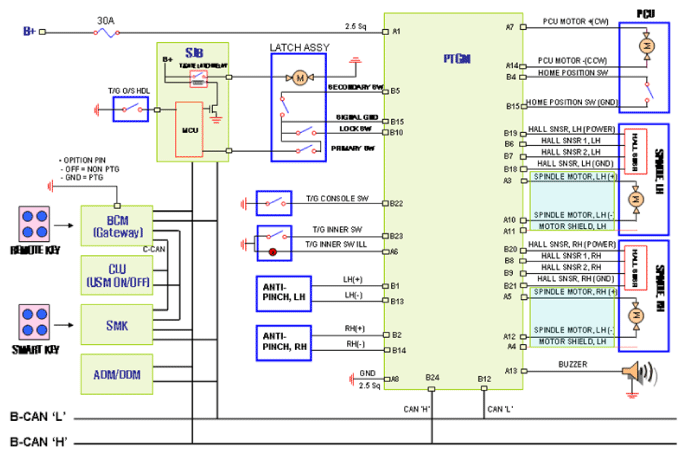

Fig 1: Power Liftgate Module Block Diagram
Courtesy of HYUNDAI MOTOR AMERICA

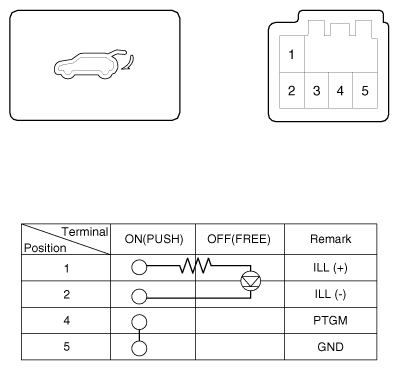

Fig 2: Power Liftgate Module Connector Terminals Continuity Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
