Starting System: Troubleshooting

NOTE:

The battery must be in good condition and fully charged for this troubleshooting.

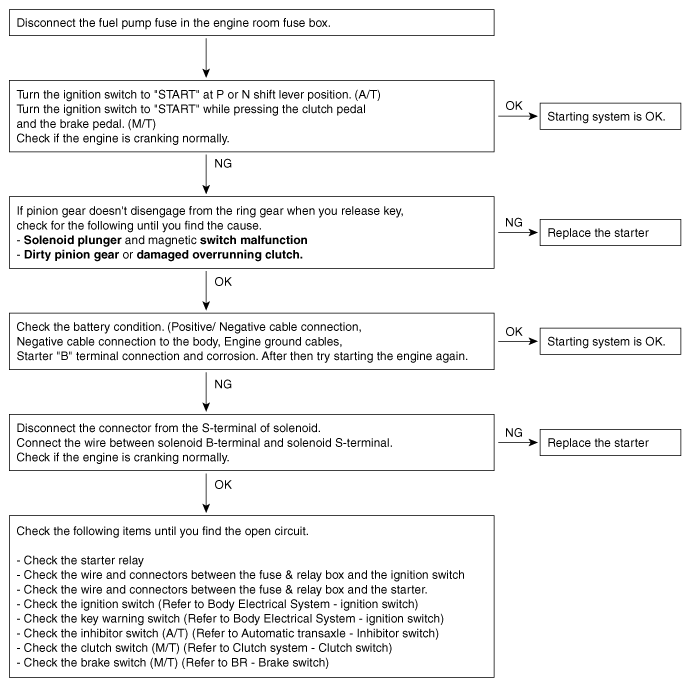

Fig 1: Starting System Troubleshooting Chart

G12033817

Courtesy of HYUNDAI MOTOR AMERICA
