Components Location

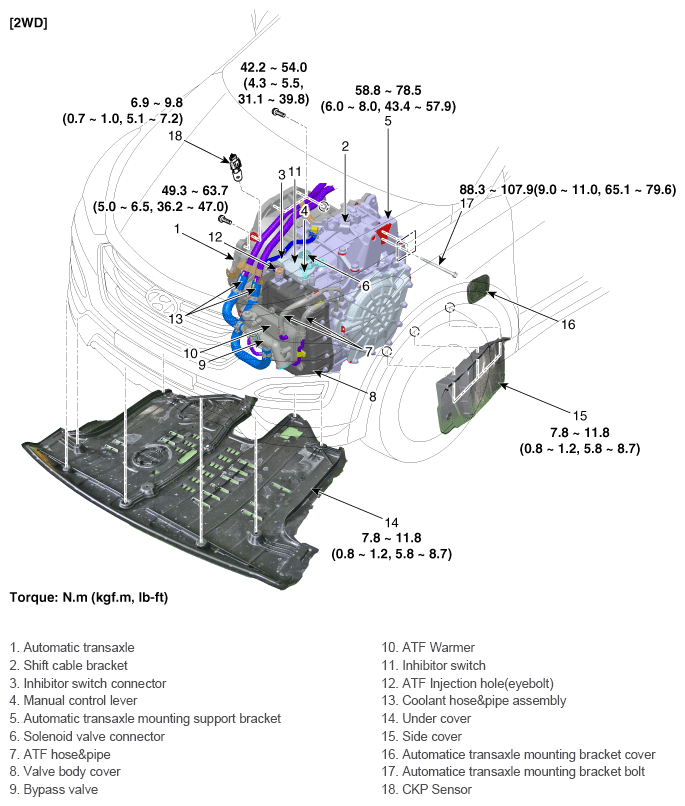

Fig 1: Automatic Transaxle Components With Torque Specifications (2WD) (1 Of 2)
G12034173Courtesy of HYUNDAI MOTOR AMERICA

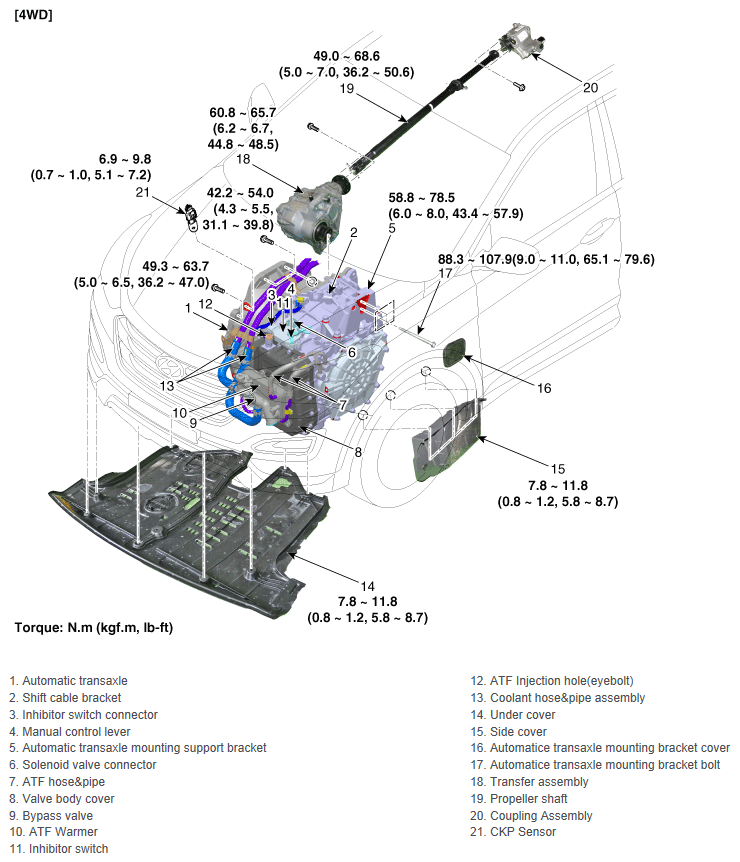

Fig 2: Automatic Transaxle Components With Torque Specifications (4WD) (2 Of 2)
G12034174Courtesy of HYUNDAI MOTOR AMERICA
