Components And Components Location: Components

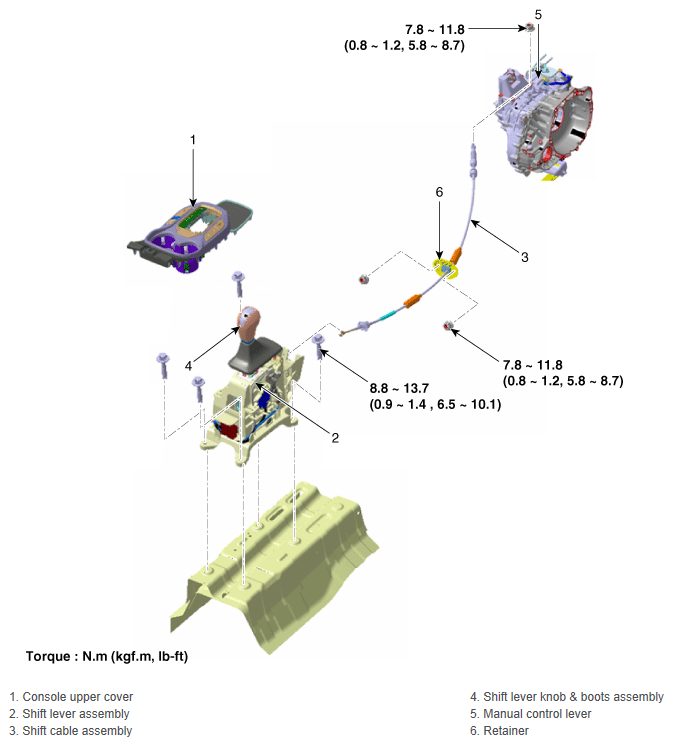

Fig 1: Shift Cable Components With Torque Specifications

G12034391

Courtesy of HYUNDAI MOTOR AMERICA
