Engine Control System - 2.4L (Except HEV)
>>
Components And Components Location
>>
Components Location
Components Location

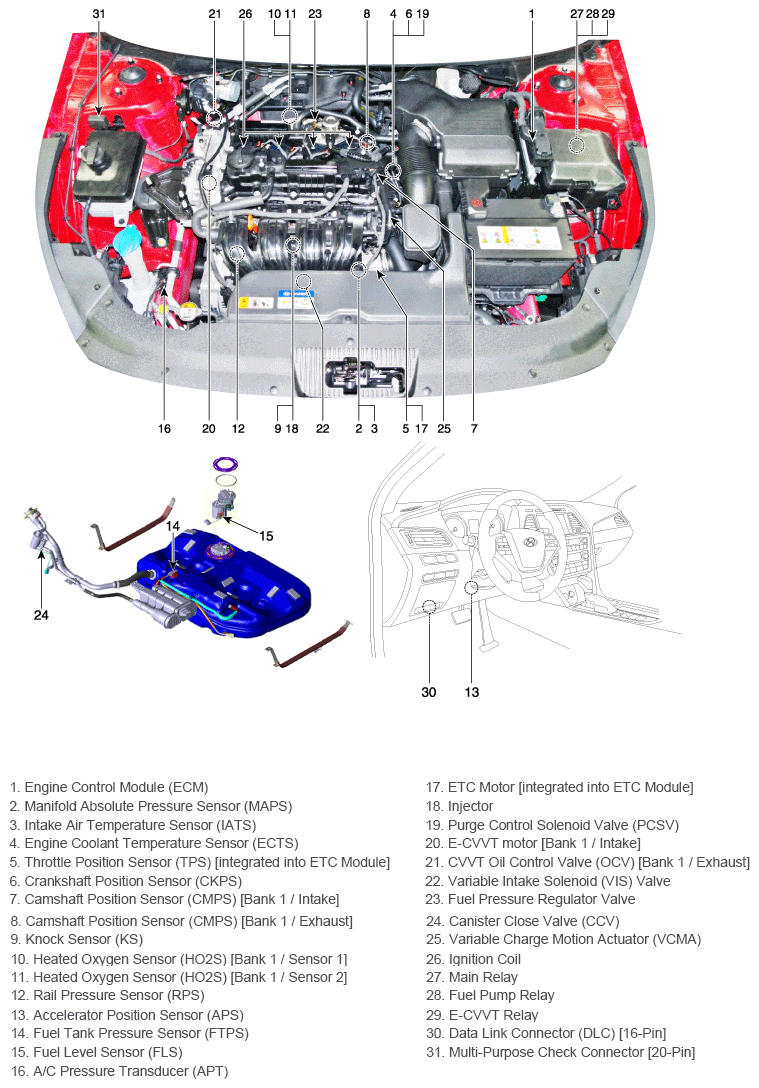

Fig 1: Engine Control System Components (1 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

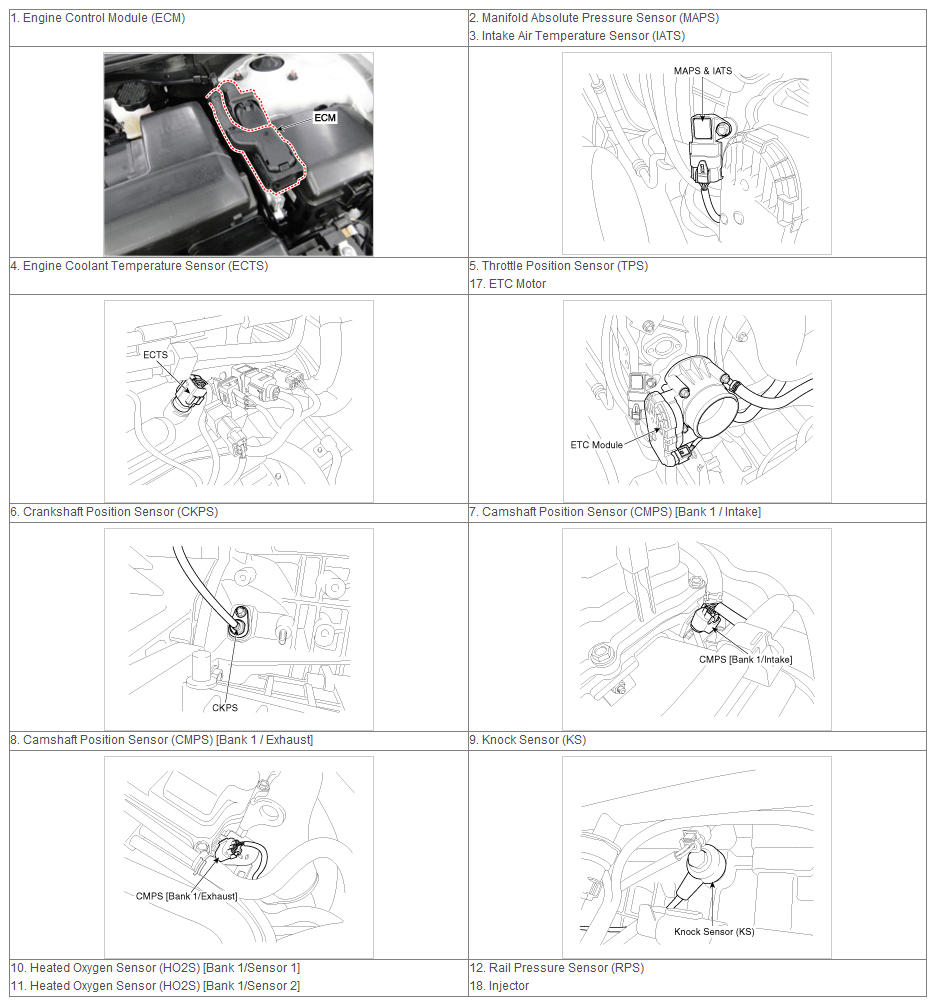

Fig 2: Engine Control System Components (2 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

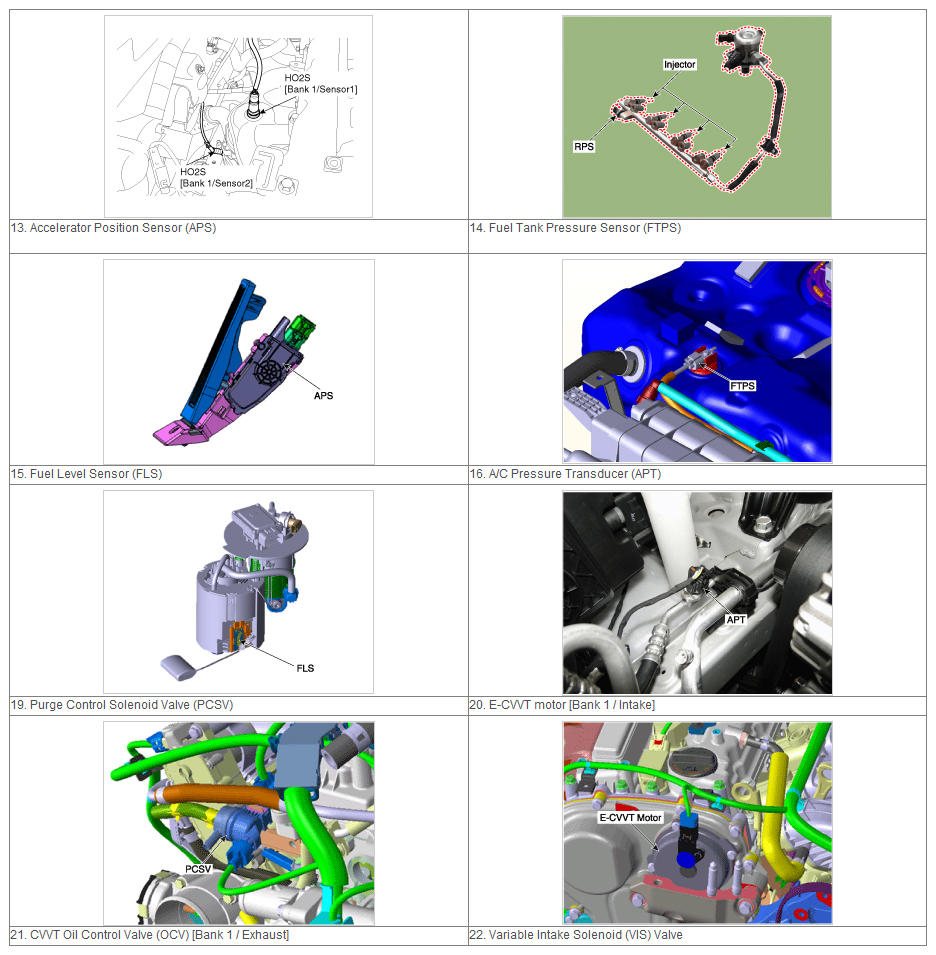

Fig 3: Engine Control System Components (3 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

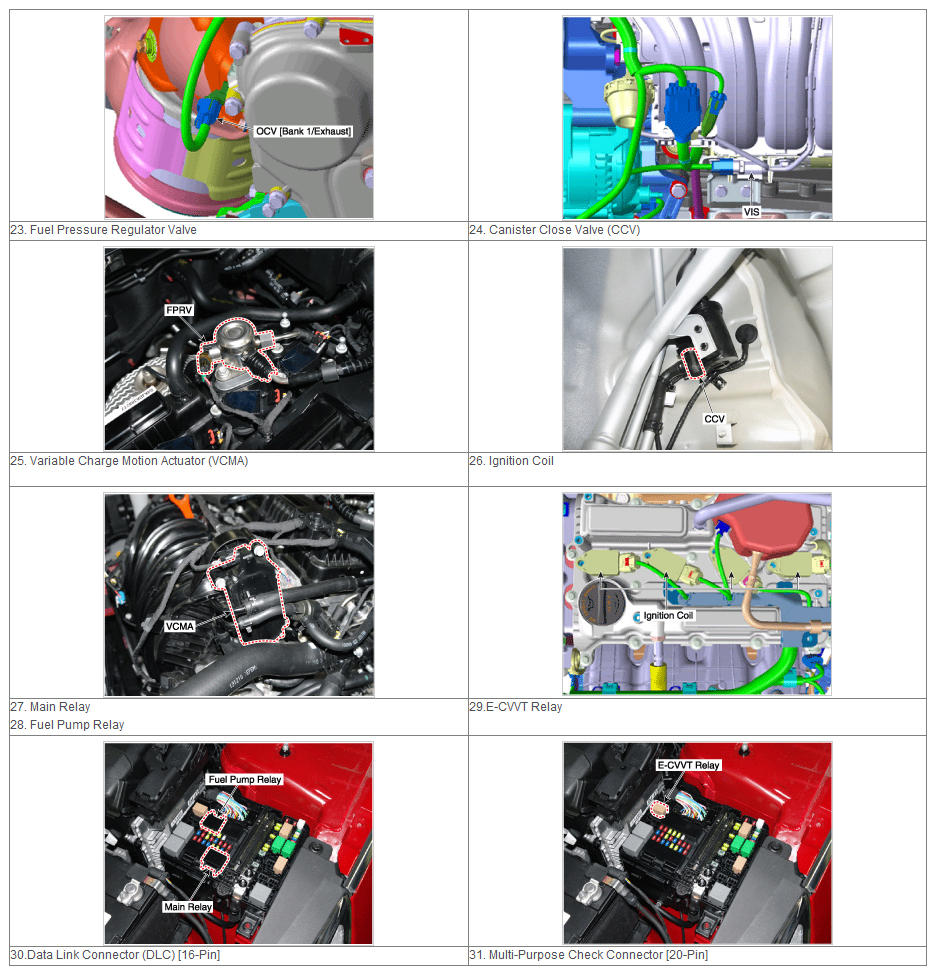

Fig 4: Engine Control System Components (4 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

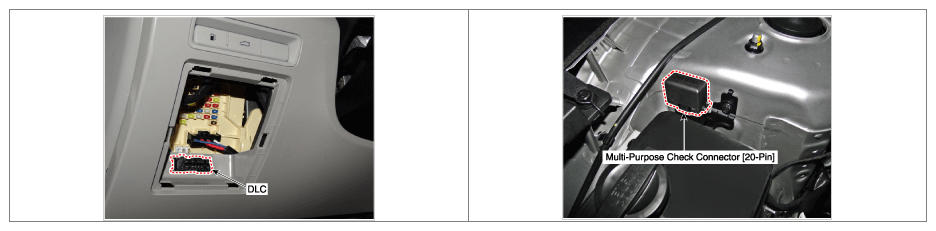

Fig 5: Engine Control System Components (5 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
