Home >> Hyundai >> 2017 >> Sonata Plug-In Hybrid >> Repair and Diagnosis >> External Pages >> Different car >> Section 249 (Driveshaft Assembly) >> Dynamic Damper >> Components and Components Location >> Components

Components and Components Location: Components

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

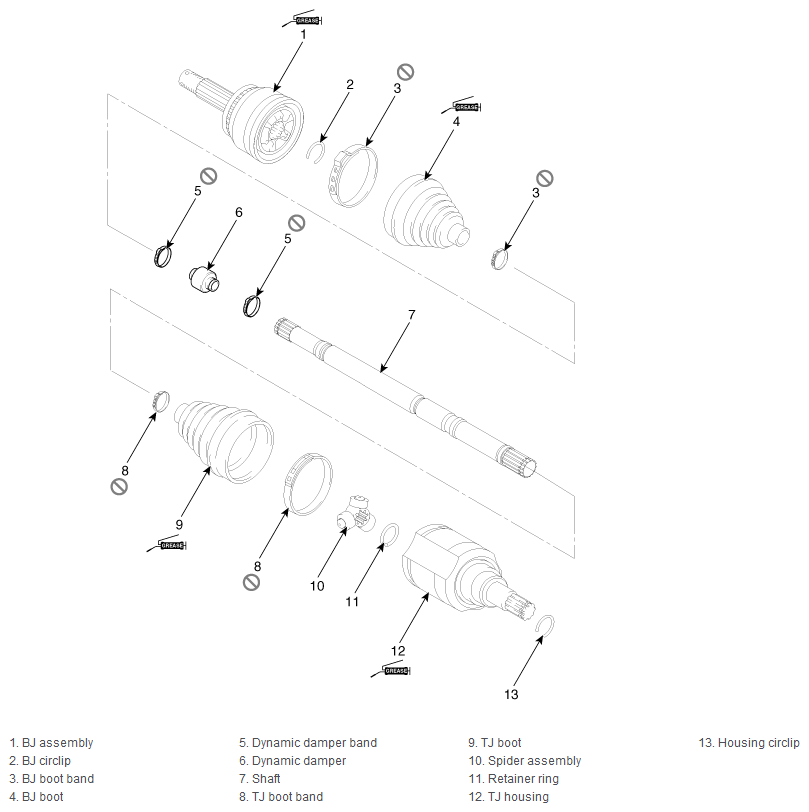

Fig 1: Exploded View Of Dynamic Damper Components
G12055942Courtesy of HYUNDAI MOTOR AMERICA
