Home >> Hyundai >> 2017 >> Sonata Plug-In Hybrid >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System (PHEV) >> Shift Cable >> Components and Components Location >> Components

Components and Components Location: Components

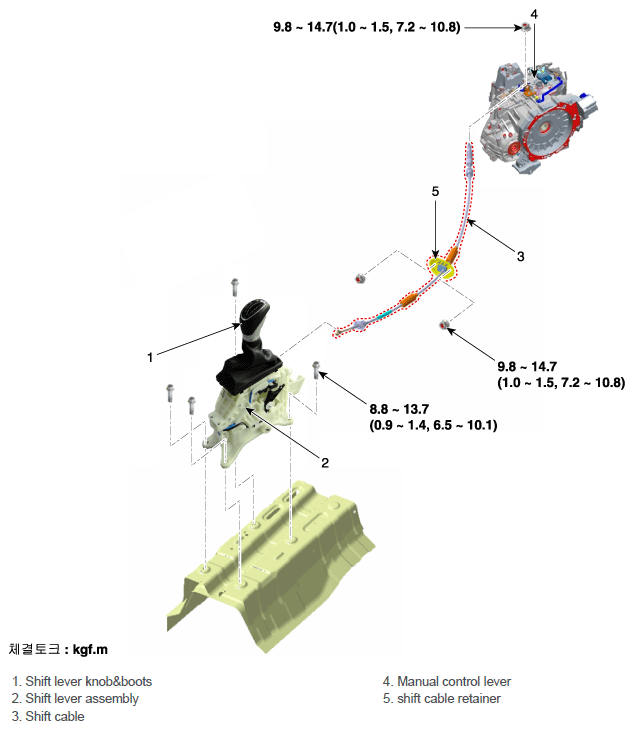

Fig 1: Shift Cable Related Components Location With Torque Specifications

G11631381

Courtesy of HYUNDAI MOTOR AMERICA
