Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization Mode".

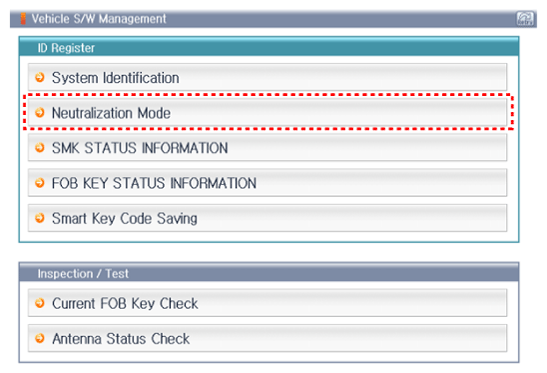

Fig 1: Screen Display - Neutralization Mode (1 Of 4)
G12042726Courtesy of HYUNDAI MOTOR AMERICA

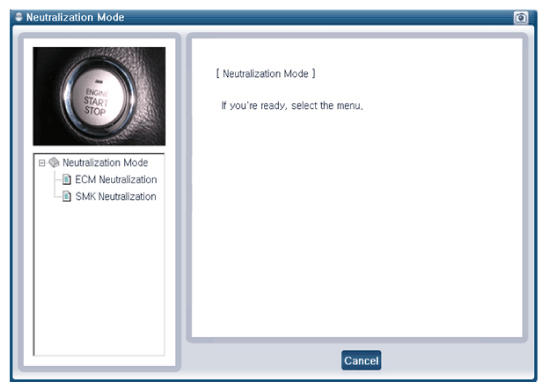

Fig 2: Screen Display - Neutralization Mode (2 Of 4)
G12042727Courtesy of HYUNDAI MOTOR AMERICA

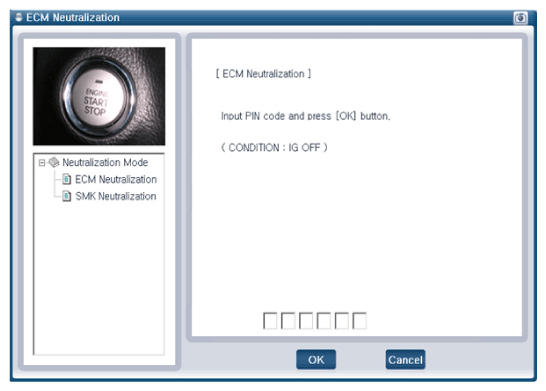

Fig 3: Screen Display - Neutralization Mode (3 Of 4)
G12042728Courtesy of HYUNDAI MOTOR AMERICA

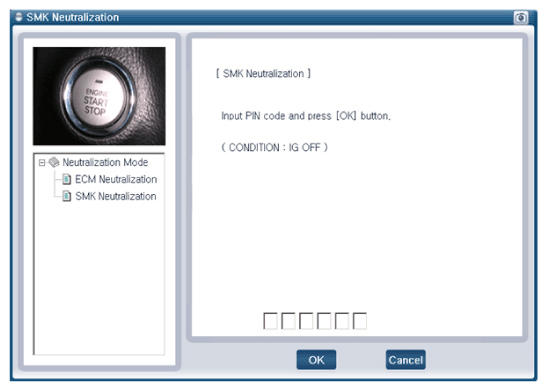

Fig 4: Screen Display - Neutralization Mode (4 Of 4)
G12042729Courtesy of HYUNDAI MOTOR AMERICA
