Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

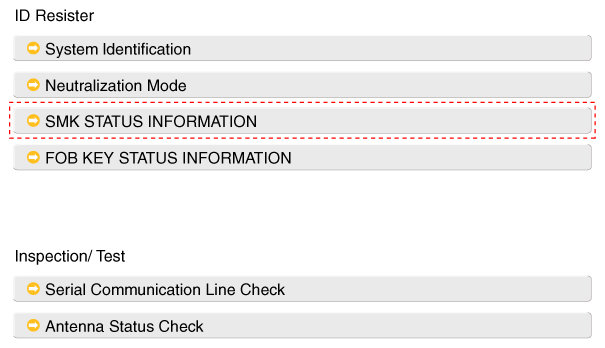

Fig 1: Screen Display - Selecting SMK Status Information (1 Of 2)
G12126231Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Screen Display - SMK Status Information (2 Of 2)
G12126232Courtesy of HYUNDAI MOTOR AMERICA
