Tailgate Switch

  1. Check for continuity between the Trunk lid open switch terminals.

    With Back View Camera

    Fig 1: Checking Continuity Between Trunk Lid Open Switch Terminals (With Back View Camera)
    G12126253Courtesy of HYUNDAI MOTOR AMERICA

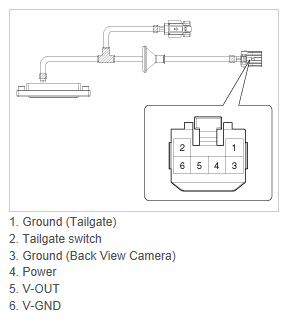

    Fig 2: Checking Continuity Between Trunk Lid Open Switch Terminals (Without Back View Camera)
    G12126254Courtesy of HYUNDAI MOTOR AMERICA
  2. If continuity is not specified, inspect the switch
    Fig 3: Trunk Lid Open Switch Connector Terminals Continuity Chart
    G12126255Courtesy of HYUNDAI MOTOR AMERICA
