Home >> Hyundai >> 2017 >> Veloster Base, Standard Trans >> Repair and Diagnosis >> Electrical >> Starter >> Button Engine Start System >> Start/Stop Button >> Components And Components Location >> Component

Components And Components Location: Component

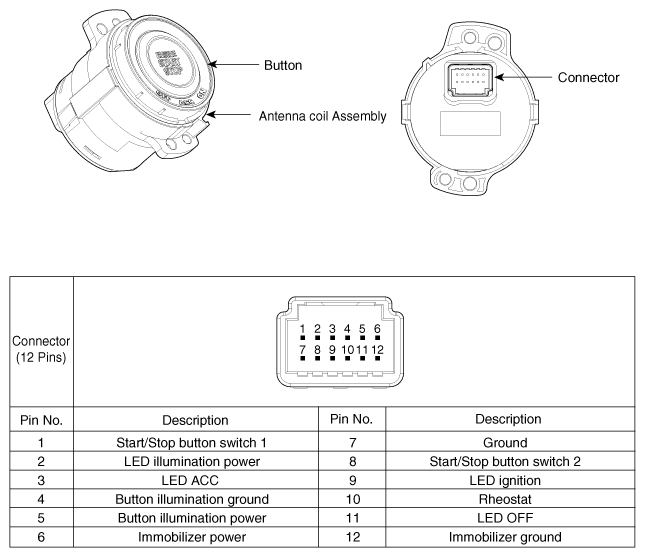

Fig 1: Locating Start/Stop Button Components & Connector Description Chart

G12128788

Courtesy of HYUNDAI MOTOR AMERICA
