Home >> Hyundai >> 2017 >> Veloster Base, Standard Trans >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition Switch Assembly >> Repair Procedures >> Inspection

Repair Procedures: Inspection

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from the steering column.
    Fig 1: Disconnecting Ignition Switch Connector & Key Warning Switch Connector From Steering Column
    G12128793Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for continuity between the terminals.
  3. If continuity is not as specified, replace the switch.

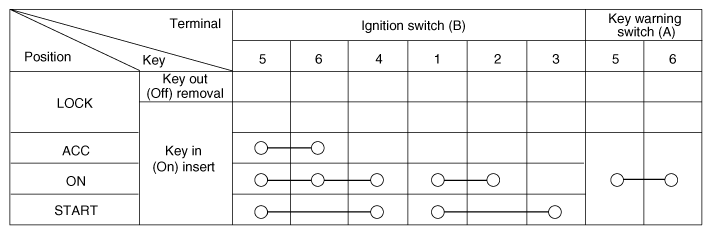

    Fig 2: Ignition Switch Connector Terminals Continuity Chart
    G12128794Courtesy of HYUNDAI MOTOR AMERICA
