Engine Control System - 1.6L T-GDI
>>
Components And Components Location
>>
Components Location
Components Location

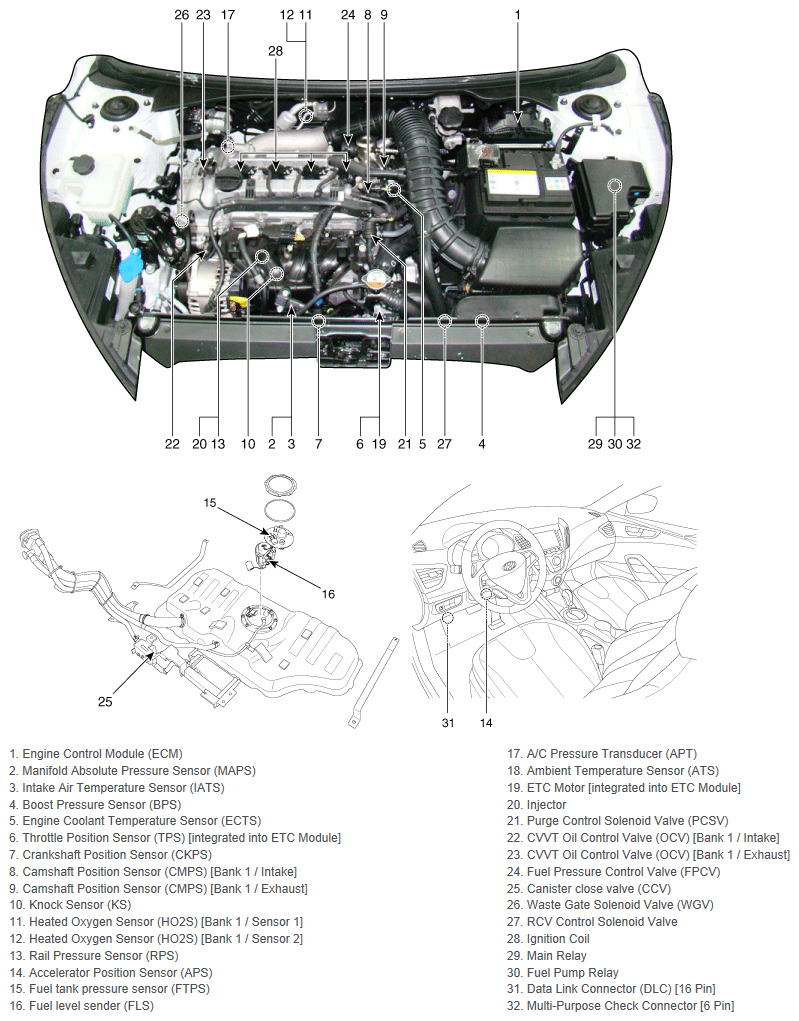

Fig 1: Locating Engine Control System Components (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

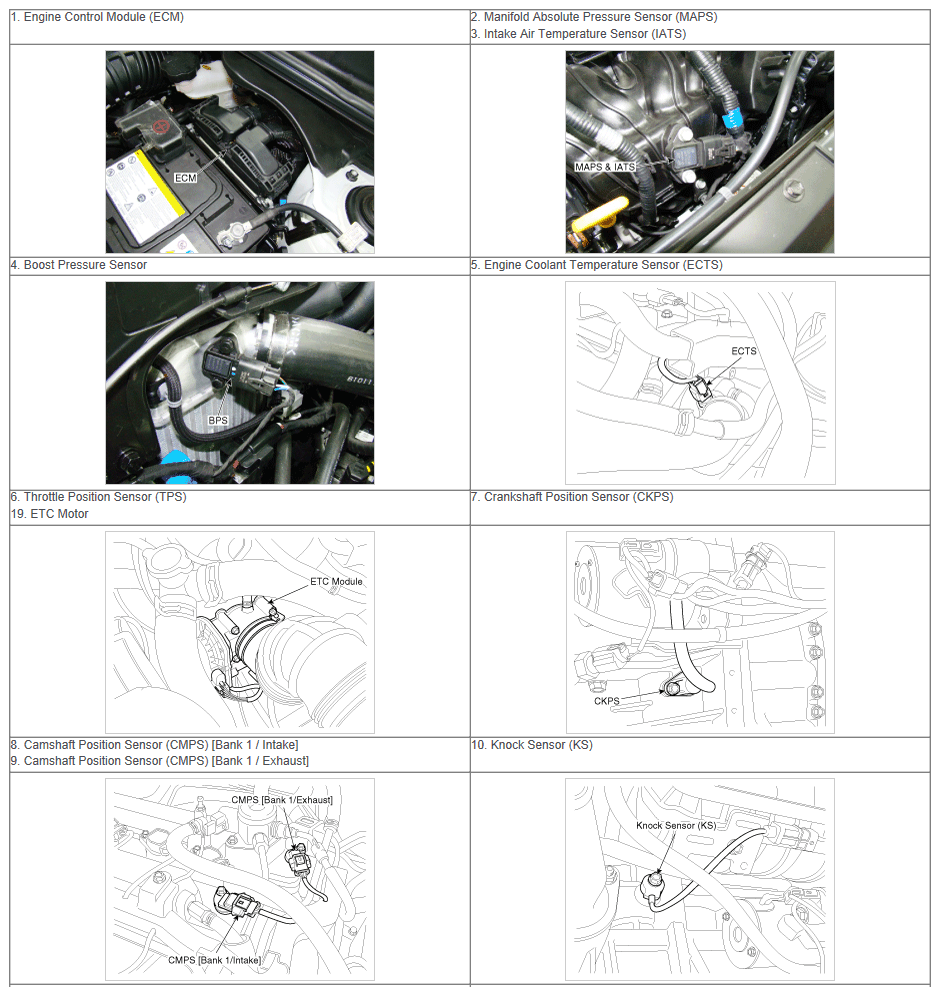

Fig 2: Locating Engine Control System Components (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

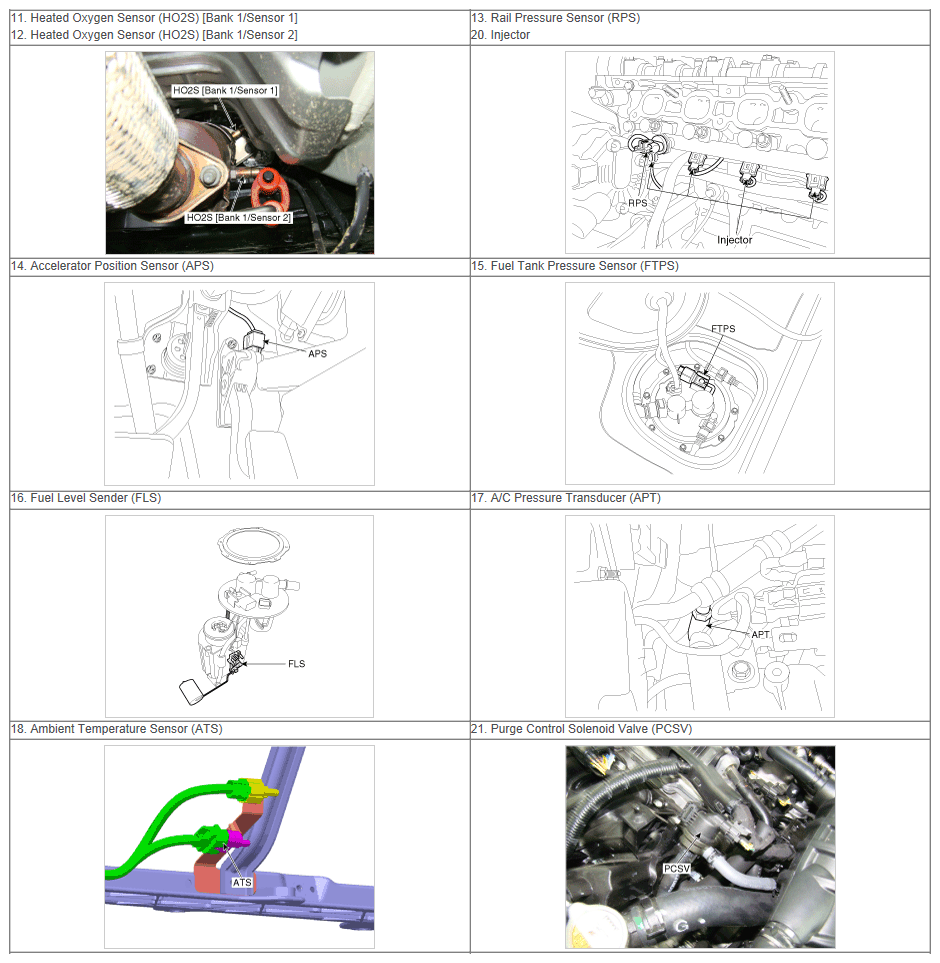

Fig 3: Locating Engine Control System Components (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

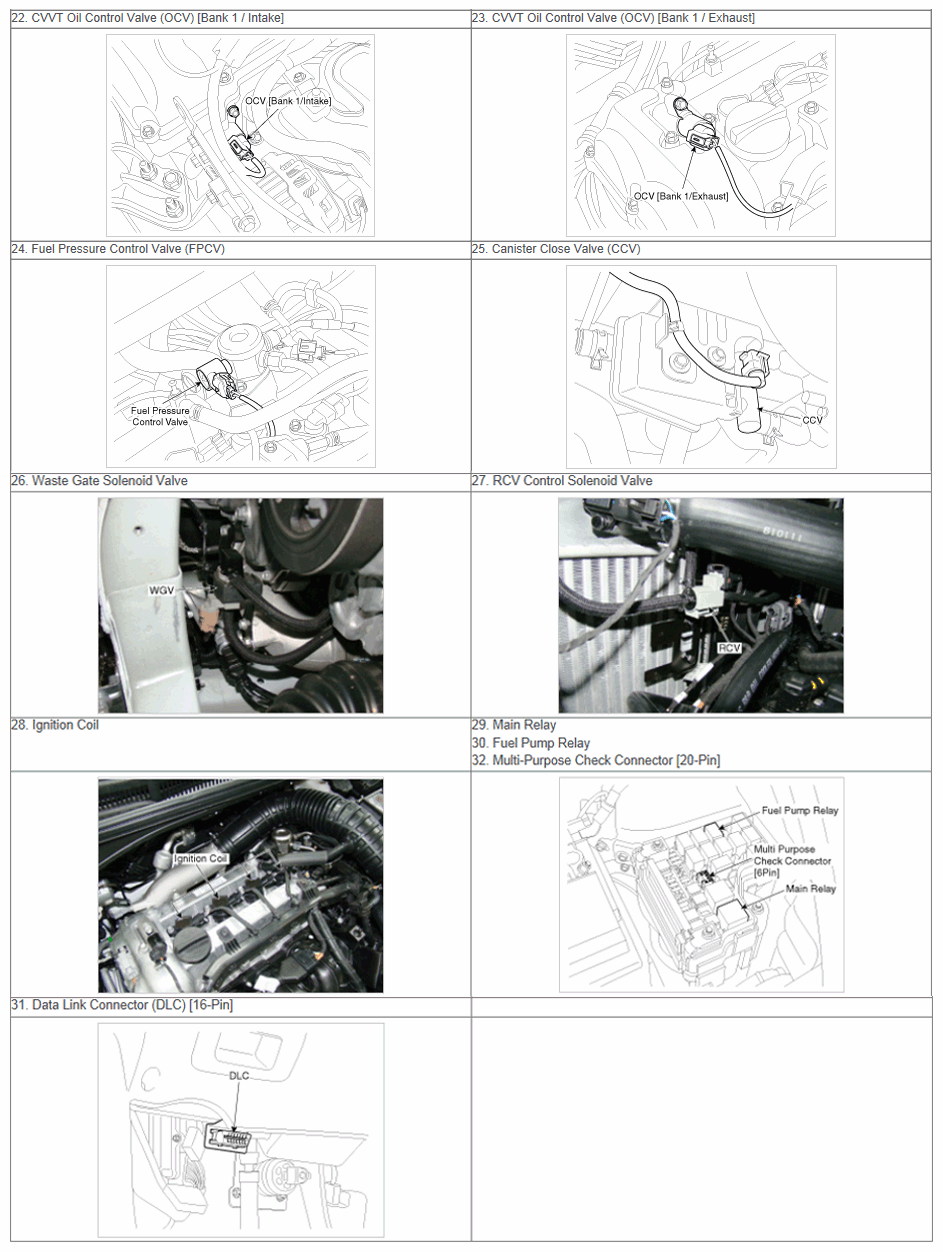

Fig 4: Locating Engine Control System Components (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
