Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the ETC module.

    (Refer to Engine Control System - "ETC (ELECTRONIC THROTTLE CONTROL) SYSTEM ")

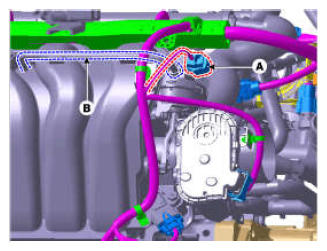

  3. Disconnect the vacuum hoses (B) from the valve.
  4. Remove the installation bolts, and then remove the valve from the surge tank.
G12598577Courtesy of HYUNDAI MOTOR AMERICA
