Component Location

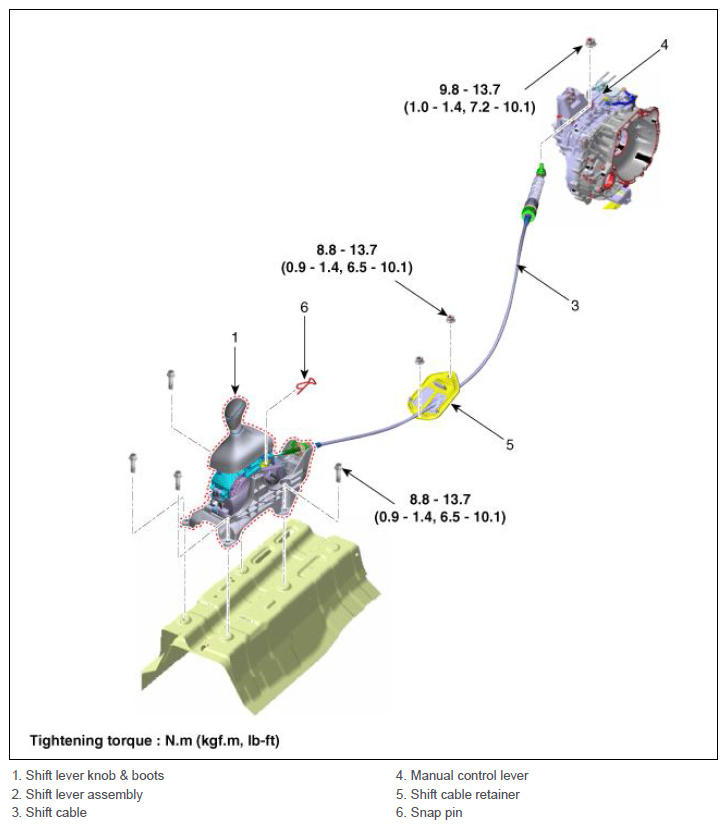

Fig 1: Shift Lever Components With Torque Specification
G12599030Courtesy of HYUNDAI MOTOR AMERICA

Tightening Torque: N.m (kgf.m, Ib-ft)
