Repair Procedures: Removal

  1. Make sure vehicle does not roll before setting shift lever to "N" position.
  2. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  3. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

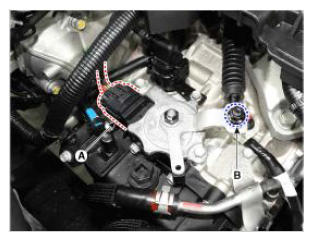

  4. Disconnect the inhibitor switch connector (A).
  5. Remove the shift cable mounting nut (B).
    G12599024Courtesy of HYUNDAI MOTOR AMERICA

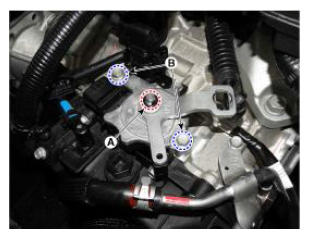

  6. Remove the Manual Control Lever and the washer after removing a nut (A).
  7. Remove the inhibitor switch after removing the bolts (B).
G12599025Courtesy of HYUNDAI MOTOR AMERICA
