Home >> Hyundai >> 2018 >> Accent SE, Standard Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Manual Transaxle Control System >> Control Cable >> Components And Components Location >> Components

Components And Components Location: Components

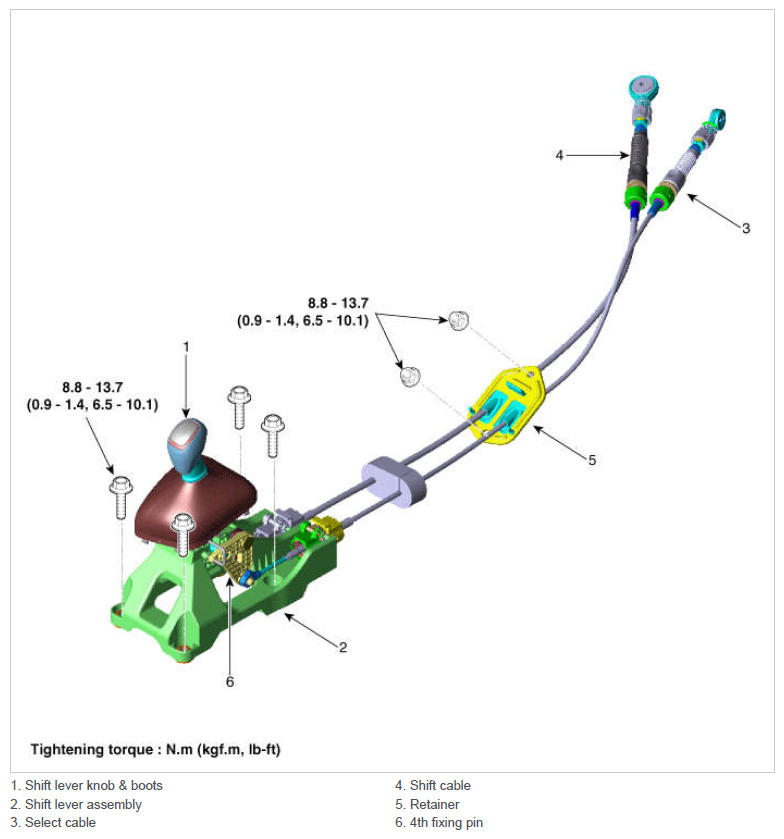

Fig 1: Locating Cable Components With Torque Specification

G12598718

Courtesy of HYUNDAI MOTOR AMERICA
