Home >> Hyundai >> 2018 >> Ioniq Plug-In Hybrid >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (PHEV) >> ETC (Electronic Throttle Control) System >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the air cleaner assembly

    (Refer to "AIR CLEANER ")

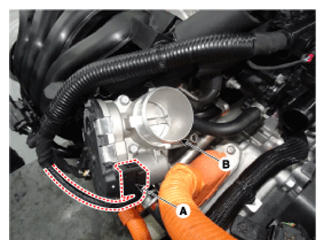

  3. Disconnect the ETC module connector (A).
  4. Remove the ETC module (B) from the engine after loosening the bolts.
    G12727115Courtesy of HYUNDAI MOTOR AMERICA
