Inspection Flow

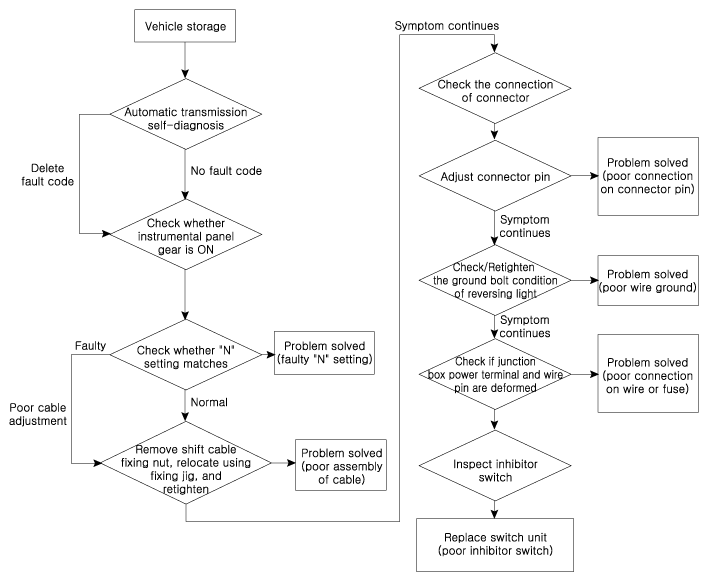

Fig 1: Inhibitor Switch Inspection Flow Chart
G12034380Courtesy of HYUNDAI MOTOR AMERICA
